Directpro-Dim Long Fiber Direct Injection Molding Solution

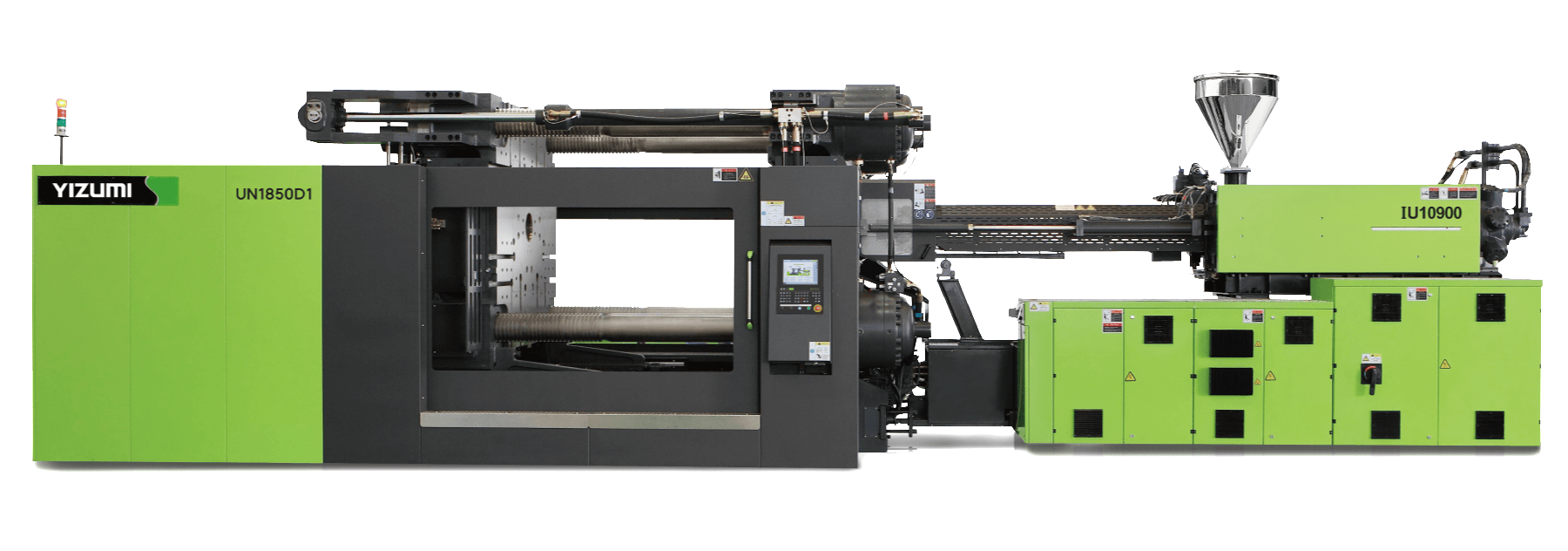

UN1850D1

The UN1850D1 two-platen injection molding machine with DIM technology enables long fiber direct injection molding process. Directly feeding long fibers during the plasticizing process for mixing (i.e. "one-step molding") allows personalization of fiber length, mixing ratio, and material combinations.

Highlights:

· Reduced fiber breakage. Long fibers bear less mechanical stress when fed into the plastic substrate in the screw metering section during plasticizing and reduce fiber breakage.

· With enhanced mechanical properties, products enjoy exponential increases in tensile and impact strength and can substitute engineering plastics to reduce production costs.

· Modular customization based on standard injection molding machines allows easy disassembly and assembly of modular units.

Product:

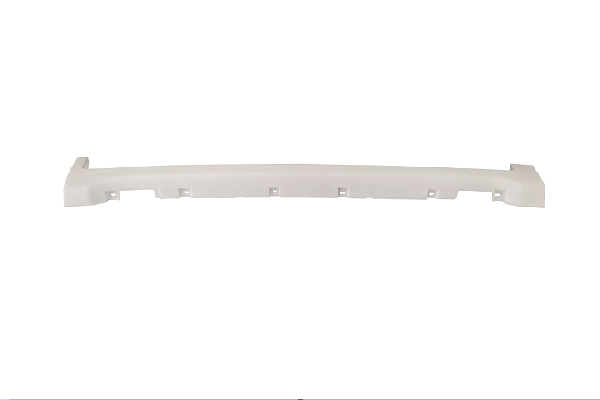

Product: Fender skirt

Cavity: 2

Size (L×W×H): 1840*210mm

Weight: 1120*2g

Cycle time: 120s

GF content: 20%

GF shearing length: 12.5mm

* All the data herein come from Yizumi's factory. Please check the data of the actual customized equipment.
