Two-Layer Thick-Wall Lens Molding Solution

UN400C3-BTP

The special UN400C3-BTP multi-component machine with the special plasticizing components for thick-wall optical guides features higher plasticizing uniformity, lower shear heat, high strength bending-free wear, and non-stick design. Equipped with hydraulic intelligent low-speed stable shot function, the third-generation electric servo turntable control system, and automation unit for local cleaning, the system provides effective solutions for thick-wall optical grade light guides and lenses.

Highlights:

· In addition to shorter production cycles, the multi-layer molding process offers higher yields and lower energy consumption.

· Equipped with a special plasticizing system for thick-wall light guides, it provides more uniform plasticizing, free of black spots and water marks.

· With a new generation of electric servo turntable technology as its standard configuration, the turntable offers higher speed and greater ease of use.

· Supported by the standard fifth-generation servo pump system, the power response speed has increased by 30%. The action response and control accuracy are significantly improved.

· The standard hydraulic intelligent injection function increases the product weight repeatability by 30%.

Product:

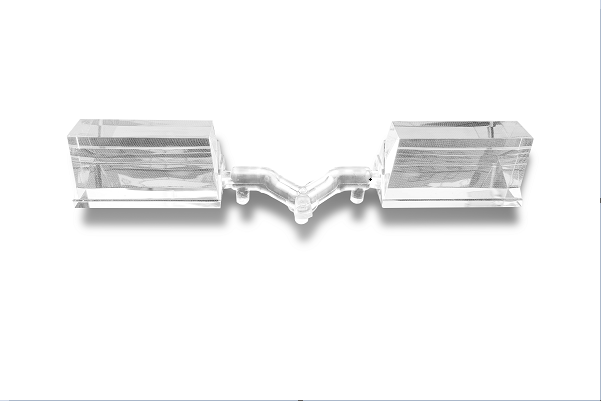

Product: Two-layer thick-wall lens

Cavity: 4+4

Material: PMMA+PMMA

Colour: Transparent

Weight: 453g

Cycle time: 347s

* All the data herein come from Yizumi's factory. Please check the data of the actual customized equipment.
