Silicone Composite Component Molding Solution

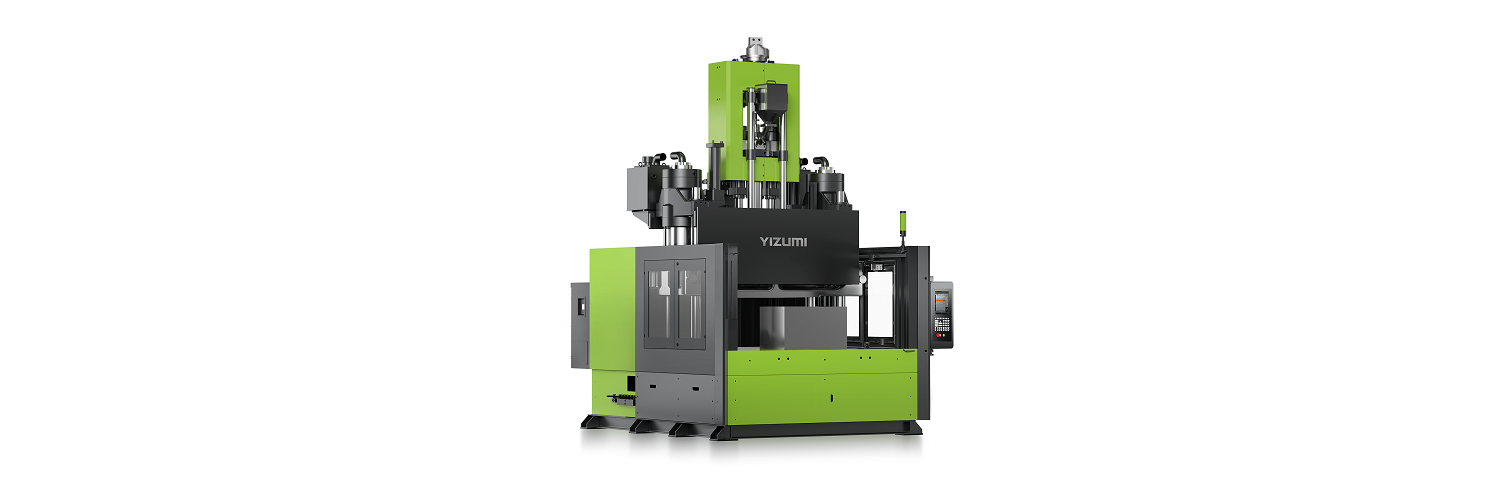

UN165V4UR+UN40V4S Vertical Injection Molding Machine

During this CHINAPLAS, the UN165V4UR and UN40V4S vertical machines will demonstrate on-site the molding solution for silicone composite components. The process involves using the YIZUMI UN40V4S vertical sliding injection molding machine to produce wire harness clips made of PA66+30%GF. Subsequently, a high-precision six-axis robot embeds the clip into the silicone mold. The UN165V4UR high-precision silicone specialized injection molding machine is then utilized for the silicone molding of the clip's sealing part. Finally, the robot automatically retrieves the finished product. The entire production process is highly automated, ensuring silicone products are free of flash.

Value Advantages

01 Through the automation integrated solution of multiple injection molding machines, it achieves a synergistic effect where 1+1＞2, fully utilizing the characteristics of each machine to match the fastest production cycle and achieve the most efficient automation production.

02 The flexible combination production method of multiple machines provides greater flexibility, adapting to a wider variety of products. Additionally, it allows for the flexible replacement of a specific machine, expanding the system's adaptability.

03 This set of equipment can be used for the production of various automotive multi-color components and other industries' multi-color solutions. Particularly for parts with embedded requirements, it can significantly shorten the production cycle.

Product

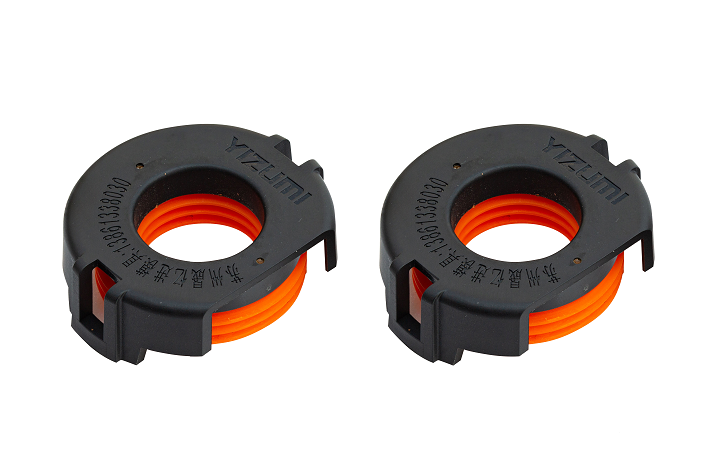

Wire Harness Clips

Mold: PS clip mold + cold runner silicone mold

Material: PA66 + 30% self-adhesive silicone

Size: φ40*40mm

Cycle time: 100s

Number of cavities: 4

*The data above were acquired by testing in the factory, only for your reference. As to the specific data, please refer to the actual equipment.
