Ultra-Low Speed·High Pressure — RHEO Series Al Rheocasting Machine: Redefining High-Performance Casting

As demand for high-end aluminum alloy parts continues to grow, lightweight design, high strength, and integrated structures have become key industry trends. Yet conventional die casting remains constrained by inherent challenges, including gas porosity, shrinkage porosity, and limited heat-treatability. These issues make it difficult to fully leverage the lightweight advantages of aluminum alloys for high-value applications.

Developed to address these challenges, YIZUMI RHEO Al Rheocasting Machine was purpose-built for semi-solid molding. Validated across a wide range of customer applications and now proven in high-volume production, RHEO series has successfully moved from the laboratory to the production floor. Backed by solid technical expertise and outstanding casting performance, it continues to earn the trust of more customers.

01.「From Turbulent to Laminar Flow」

Redefining Filling and Feeding Dynamics

At the core of conventional die casting's limitations lies the conflict between its filling mechanism and solidification characteristics. For components requiring thick-wall sections, high mechanical performance, and subsequent heat treatment, this issue becomes especially significant.

The turbulent flow generated during high-speed filling causes the molten metal to roll and mix violently within the die cavity, entrapping gases and leading to porosity defects. At the same time, thick sections solidify more slowly, while feeding channels may become blocked prematurely, making shrinkage porosity and shrinkage cavities more likely to occur.

More critically, these defects can become increasingly problematic during the high-temperature solution treatment stage of the T6 heat treatment process. As trapped gases expand, they may cause surface blistering and dimensional distortion.

Semi-solid processing fundamentally redefines the filling and feeding process. By leveraging the unique rheological behavior of metal in the semi-solid state, it replaces high-speed turbulent flow with low-speed laminar filling. As the slurry flows smoothly through the die cavity, gas entrapment is significantly reduced. During intensification, high pressure is applied to promote effective feeding in thick sections, compensating for solidification shrinkage and minimizing shrinkage-related defects.

The combination of reduced gas entrapment and enhanced feeding enables castings to undergo T6 heat treatment. As a result, die castings can evolve from conventional structural parts into critical applications requiring high load-bearing capacity and excellent pressure tightness.

02.「From Theory to Equipment」

Redefining Process Control in Rheocasting

The challenge of semi-solid processing lies in translating the rheological properties of the slurry into controllable process parameters. This requires precise, millisecond-level coordination of speed, pressure, and position throughout the injection process.

"The core strength of the RHEO Series lies in its ability to deliver both stability and performance in semi-solid slurry processing," explained Mr. Wang Caihua, Product Manager for RHEO Series Al Rheocasting Machine of YIZUMI's Die Casting Machine Division.

Stability is embodied in the RHEO Series' intelligent injection system. The system provides up to 10 stages of precise low-speed control while maintaining a maximum injection speed of ≤5 m/s. Full closed-loop control, combined with a system pressure of 21 MPa, enables continuous optimization of the injection process through self-learning and adaptive adjustment. Lower start-up impact ensures reduced air entrapment and more consistent casting quality.

Performance is driven by the machine's powerful dynamic injection force. Combined with a high-response servo drive system and programmable injection profiles, the RHEO Series can readily handle the production of complex, thick-section, and thin-wall components. This ensures more uniform cavity filling and further enhances casting integrity and consistency.

Built on the LEAP technology platform and powered by the ORCA control system, the RHEO Series delivers precise low-speed filling and high-pressure forming. Equipped with a high-response servo drive system, it offers clamping forces ranging from 3800 kN to 25,000 kN, with larger configurations available on request. This combination enables the production of high-quality castings in a single forming cycle.

03.「From Microstructure to Performance」

Demonstrating the Value of Semi-Solid Processing

The true value of semi-solid processing is ultimately validated through the microstructure and performance of the finished component.

After T6 heat treatment, it achieved a tensile strength exceeding 320 MPa and a yield strength exceeding 260 MPa, demonstrating performance well beyond that of conventional die castings.

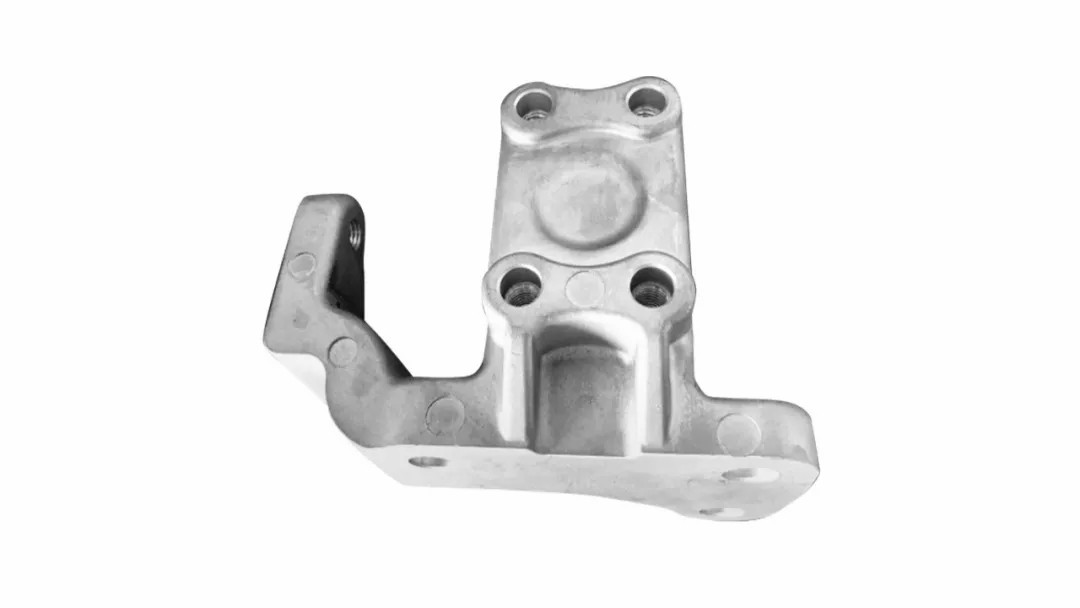

Taking an automotive exhaust after treatment bracket as an example, the component, with a wall thickness of over 20 mm, was produced on a RHEO machine with no porosity or shrinkage defects and a uniform microstructure.

Brake calipers provide another compelling example. Featuring relatively thick sections and stringent pressure-tightness requirements, even minor porosity defects can lead to brake fluid leakage or pressure loss. Leveraging RHEO's ultra-low-speed, high-pressure process, the castings achieved a uniform microstructure free from porosity and shrinkage defects, while successfully undergoing T6 heat treatment without surface blistering.

"This demonstrates that the RHEO Series is capable of producing not only thick-section components, but also high-precision parts, providing a reliable aluminum alloy solution for advanced braking systems," said Wang.

He added that even in thick gate areas with complex geometries, CNC machining revealed no porosity or other internal defects, further validating the stability and reliability of the process.

04.「From Individual Components to System Applications」

Advancing Lightweight Manufacturing

The value of the RHEO Series extends far beyond addressing the challenge of producing thick-section components. More importantly, it opens a pathway for the transition from conventional die casting to advanced forming technologies.

The RHEO Series supports a wide range of applications and can replace products traditionally manufactured by gravity casting, low-pressure casting, and squeeze casting. In some cases, it can even serve as an alternative to forged parts.

This enables manufacturers to achieve comparable performance with higher material utilization, shorter production cycles, and lower overall costs.

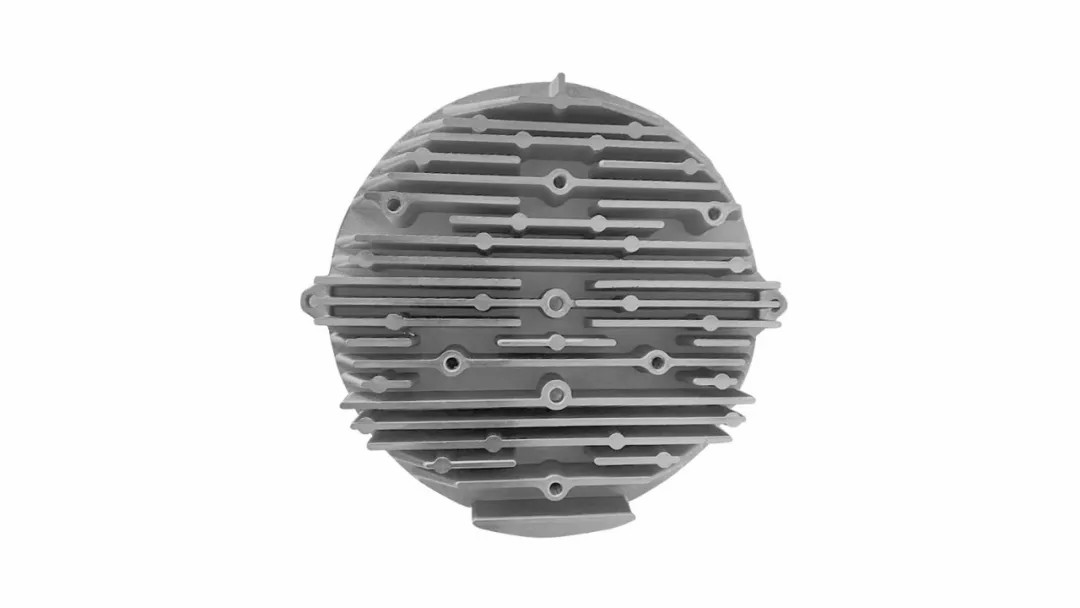

Centered on automotive applications, the RHEO Series is also expanding into sectors such as telecommunications equipment and cycling components, including hydraulic brake systems. By replacing traditional cast iron and sand-cast parts with lightweight aluminum alloy components, it helps reduce weight and improve efficiency, supporting the growing demand for lightweight solutions in new energy vehicles and modern mobility applications.

"The RHEO Series frees manufacturers from many of the limitations of conventional processes, enabling the adoption of lighter, stronger, and more reliable component designs. This translates directly into greater product competitiveness,”

Wang noted," As lightweighting continues to reshape global manufacturing, the RHEO Series transforms the advantages of semi-solid processing into high-quality aluminum alloy components that are measurable, heat-treatable, and weldable.”

* Data were obtained under specific test conditions; actual performance may vary. Provided for reference only, not as a commitment.
