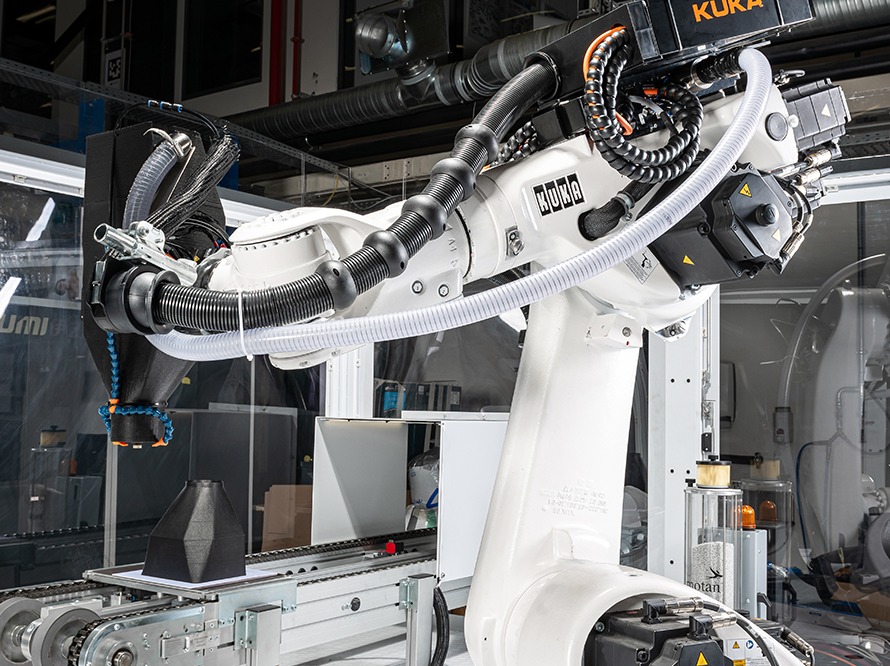

From 1.6 to 3.9 meters Kuka arm, our popular Beckhoff based HMI and from currently 2 extruder types and various tables you can choose your Big Printer.
Big all in one solution
Full running system with standard periphery for plastics processing
Freely accessible manufacturing cell
Lean design with many opportunities for various production integration
Big. Bigger. B-Line
High Range up to 3.9 m with high throughput up to 25 kg/h
SpaceA machine introduction
SpaceA machine introduction
SpaceA Technology
SpaceA technology is based on the layer-by-layer deposition of molten thermoplastic. A solid component can be built by solidifying this melt strand. YIZUMI´s SpaceA technology is based on 4 principles for economical use:
- Use of a screw extruder
- Use of a high plant modularity
- Use of a high plant modularity
- Use of a 6-axis positioning system Use of an industry standard control system

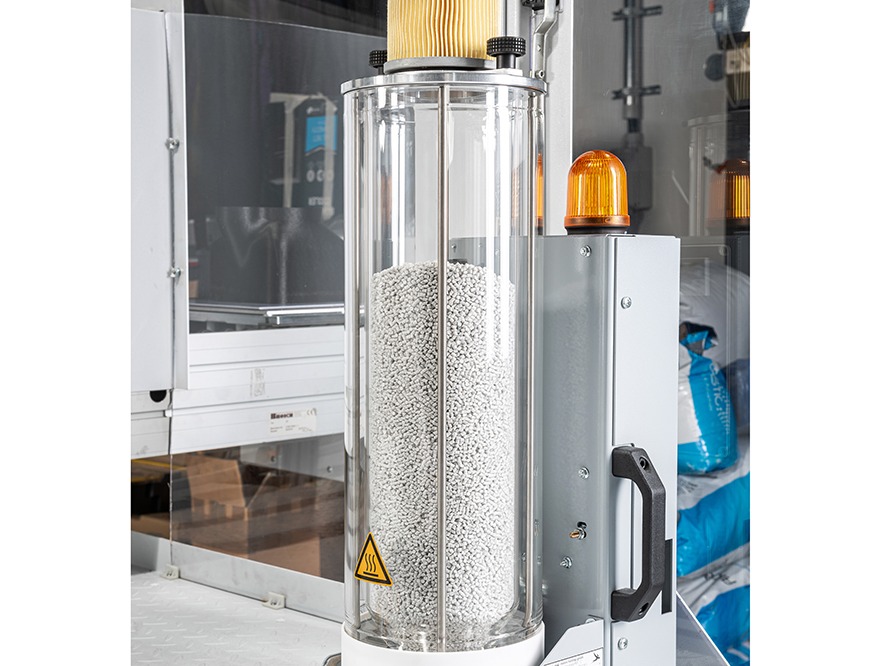

Material Drying
Integrated drying unit can achieve raw material pretreatment.

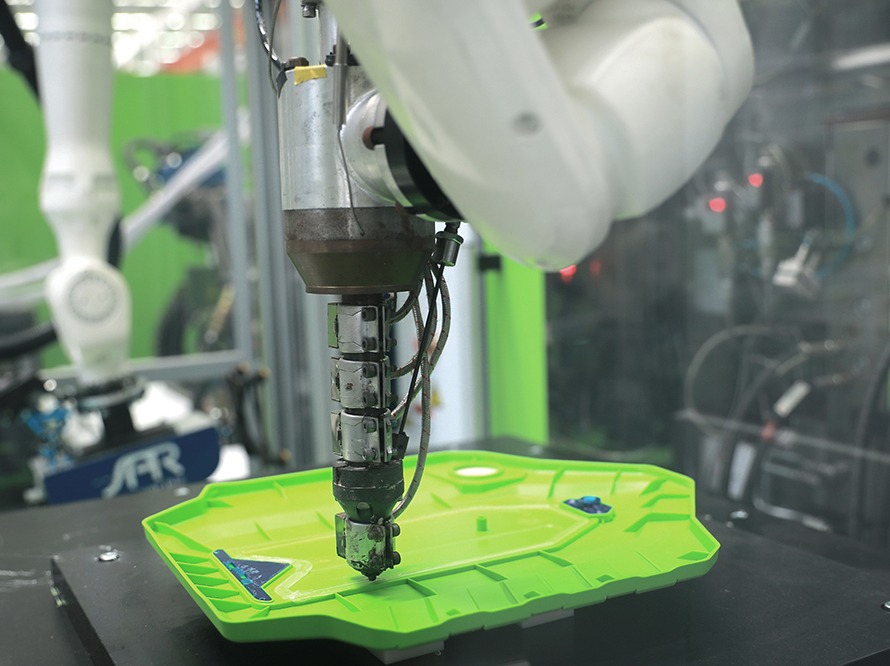

Single Screw Extruder
Most compact extruder technology with concentric feed zone and integrated drying unit.

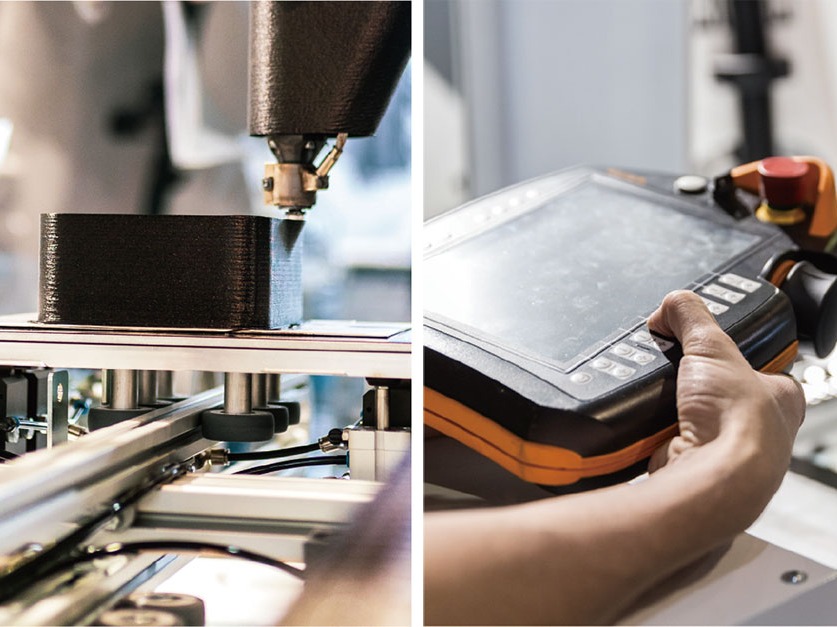

Positioning System
A 6-axis robotic system with positioning accuracies of 0.05 mm.

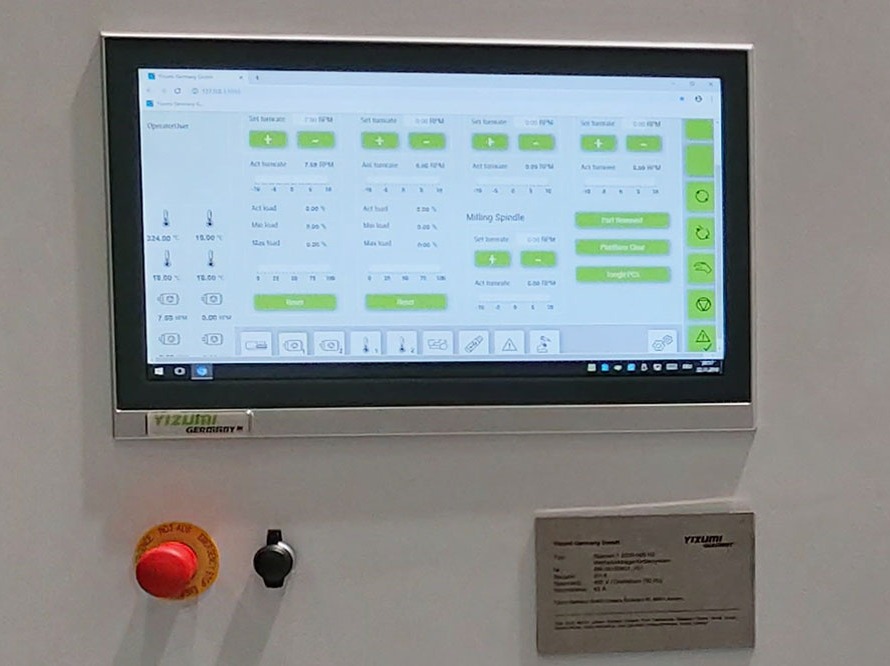

Control on Industry Standard
Higher-level control concept with many interfaces available in the standard version.

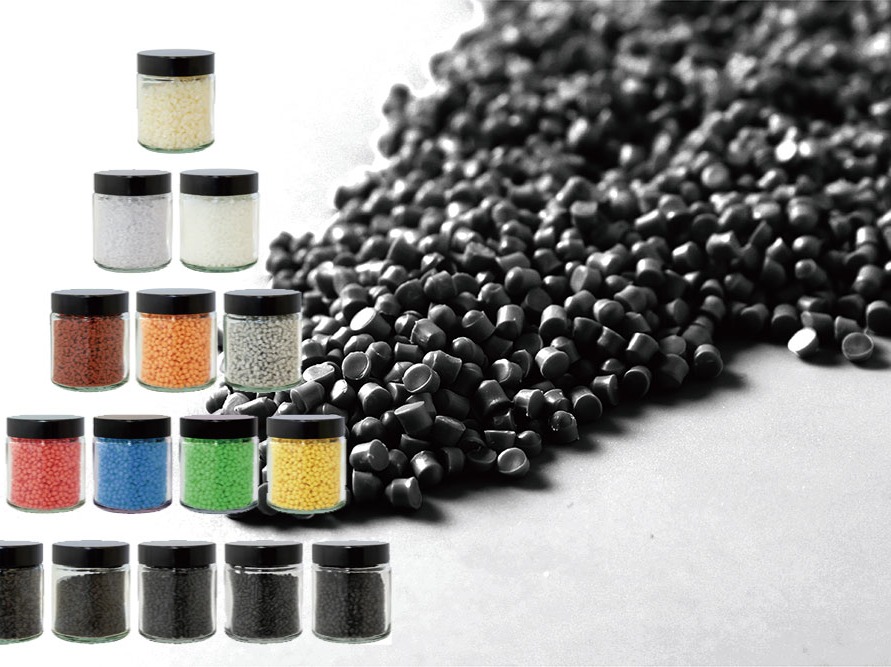

Material Diversity
- The screw plasticizing unit is operated with conventional thermoplastic granulate.
- Compared to filament-based production technologies, this enables the processing of unfilled, but also highly filled plastic compounds with simultaneously high and scalable throughputs. The possible high throughput leads to a considerable cost advantage in the processing of engineering thermoplastics. In addition, depending on the material, the low price of granulate (approx. 1 to 8 €/kg) compared to filament (approx. 20 to 500 €/kg) results in a considerable cost reduction potential.

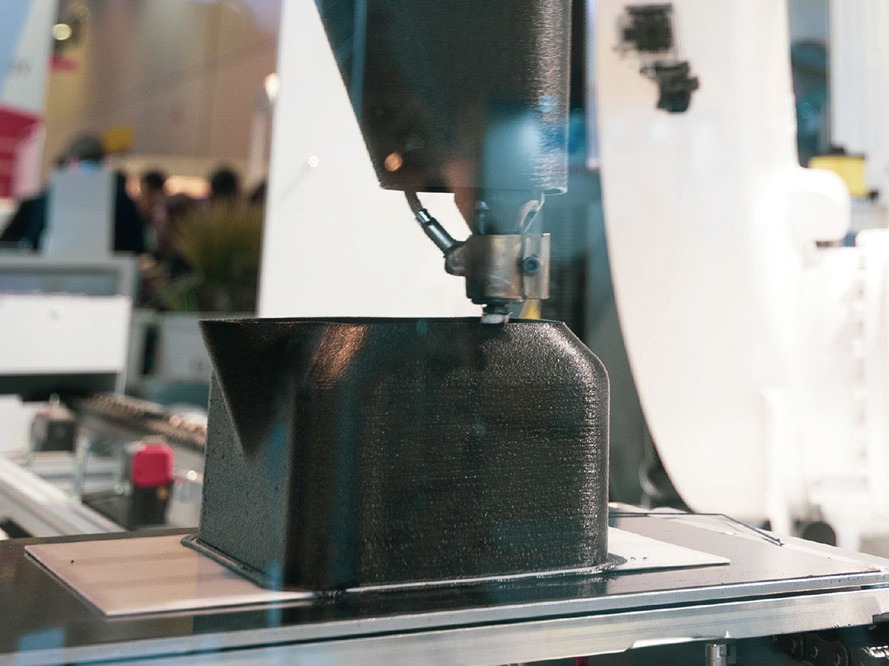

Productivity & Economical efficiency
- The high productivity of the process used is based on the physical principle of shear heating within the screw extruder. In contrast to the pure plastification via heat conduction, a scalable conveying rate independent of the thermal conductivity of the material can be achieved. Depending on the process point, the throughput rate can be increased to several kilograms per hour.
- Like previous manufacturing processes, additive manufacturing plants must also be subject to the usual investment calculations. Accordingly, the plant investment must be reduced and the material output increased at the same time. Only with high ratios of absolute investment and material output per year can an economic production be guaranteed in comparison to injection molding.

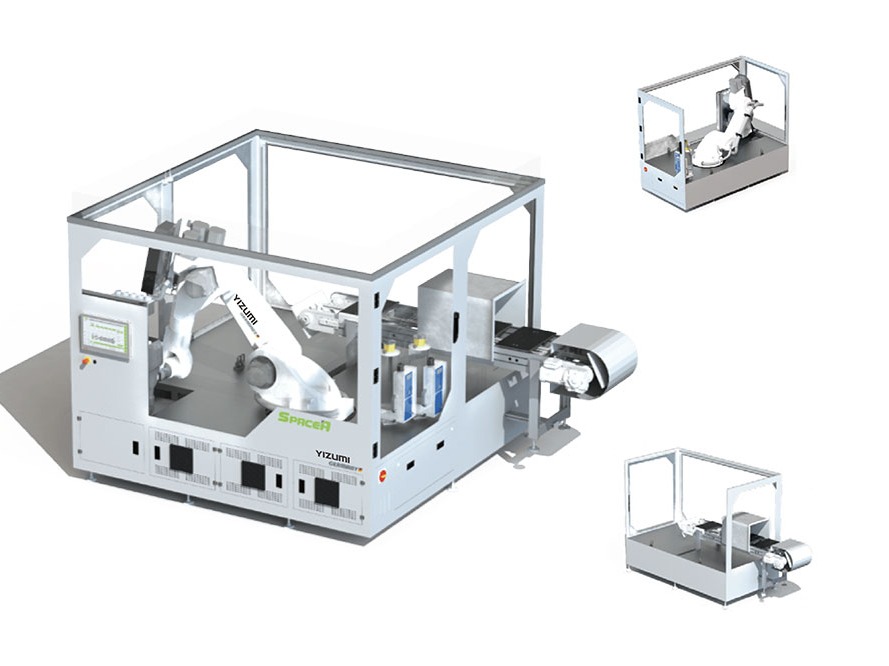

Scalability
- The flexibility of the system is based on the separation of platform module and print module.
- Thus, a standardized production module can be combined with different platform modules or several production modules can be combined with one platform module.
- SpaceA using high module design with print module and platform modul, could match different products and system for flexible production.
High Potential of Automation
- A 6-axis industrial robot overcomes the usual limitations of component size and design complexity. In order to ensure reproducible dimensional accuracy and high surface quality and at the same time avoid a restriction of component complexity, subtractive processes are integrated into the manufacturing process by combining additive structure and machining in one manufacturing system.
- Based on this approach, it is also possible to integrate inserts such as threaded or bearing bushes, injection molded parts, electronic or ceramic inserts and to equip the component to be manufactured with additional functions. For this purpose, the machine used for extrusion and machining operations is equipped with a standardized tool changing system, which guarantees a high degree of automation and flexibility.
Use general injection molding materials to break through the barrier of small batch industrial manufacturing and fill the gaps in traditional industrial manufacturing.
FF Series Electric Injection Molding Machine
This series surpasses traditional machine standards, facilitating seamless automation and intellectualization integration for improved quality consistency and efficiency. Superior in thickness, precision, and complexity, it meets demanding core product needs. Clamping forces range from 900 to 13,800 kN.
Flap Folding And Protective Film Application
The flap folding and protective film application system integrates the flap folding and film application of food packaging processes. It has achieved linked operation with the injection molding machine, effectively reducing the manual operation time and providing customers with a better and more convenient product experience.
