Machine Introduction Video
Precise
Efficient
Energy-saving
Machine Introduction Video
Clamping Unit

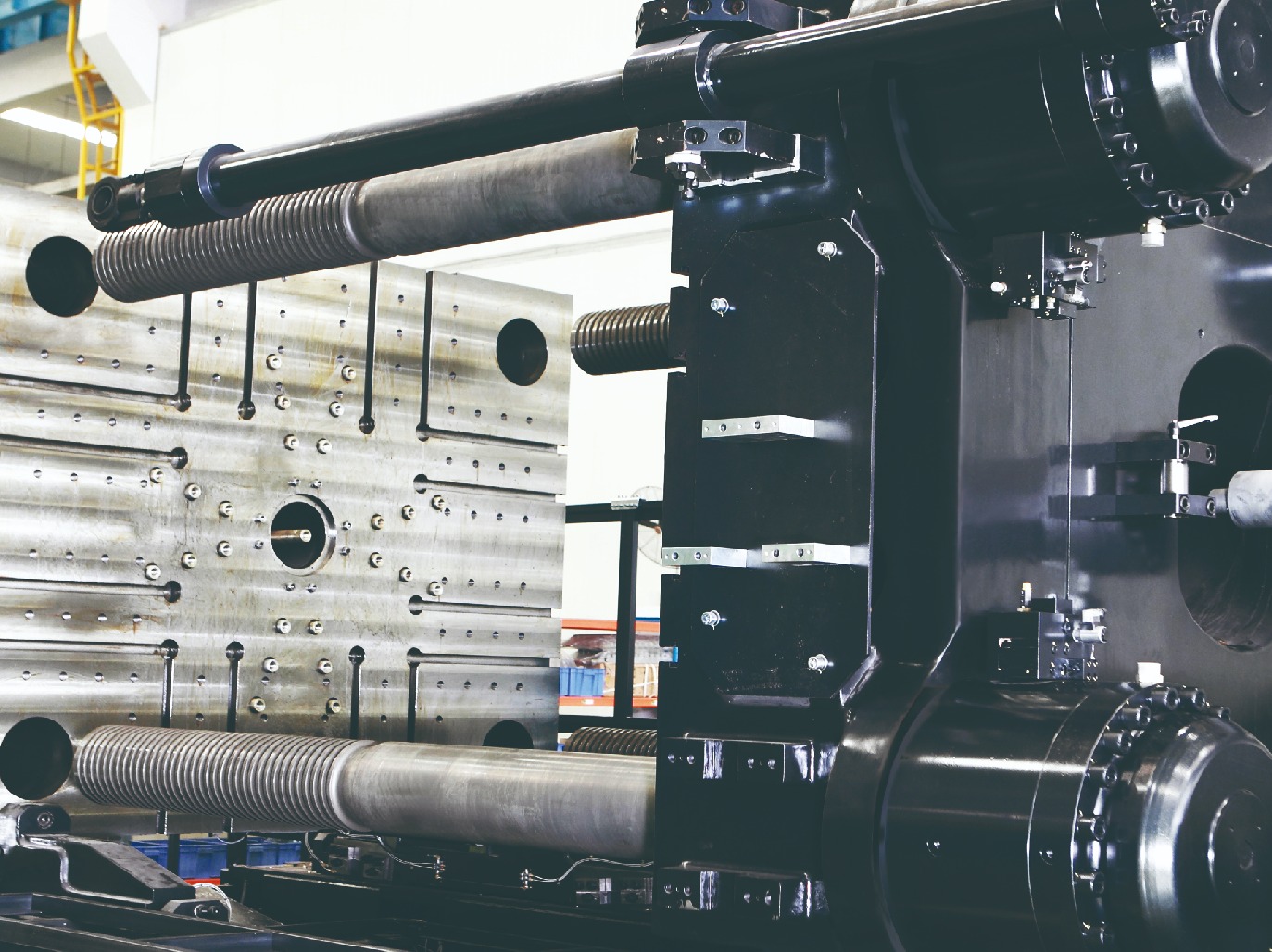

Synchronous locking nut mechanism
The fast, reliable and durable synchronous locking nut mechanism is driven by patented impact-cushioning cylinders and performs movements accurately.

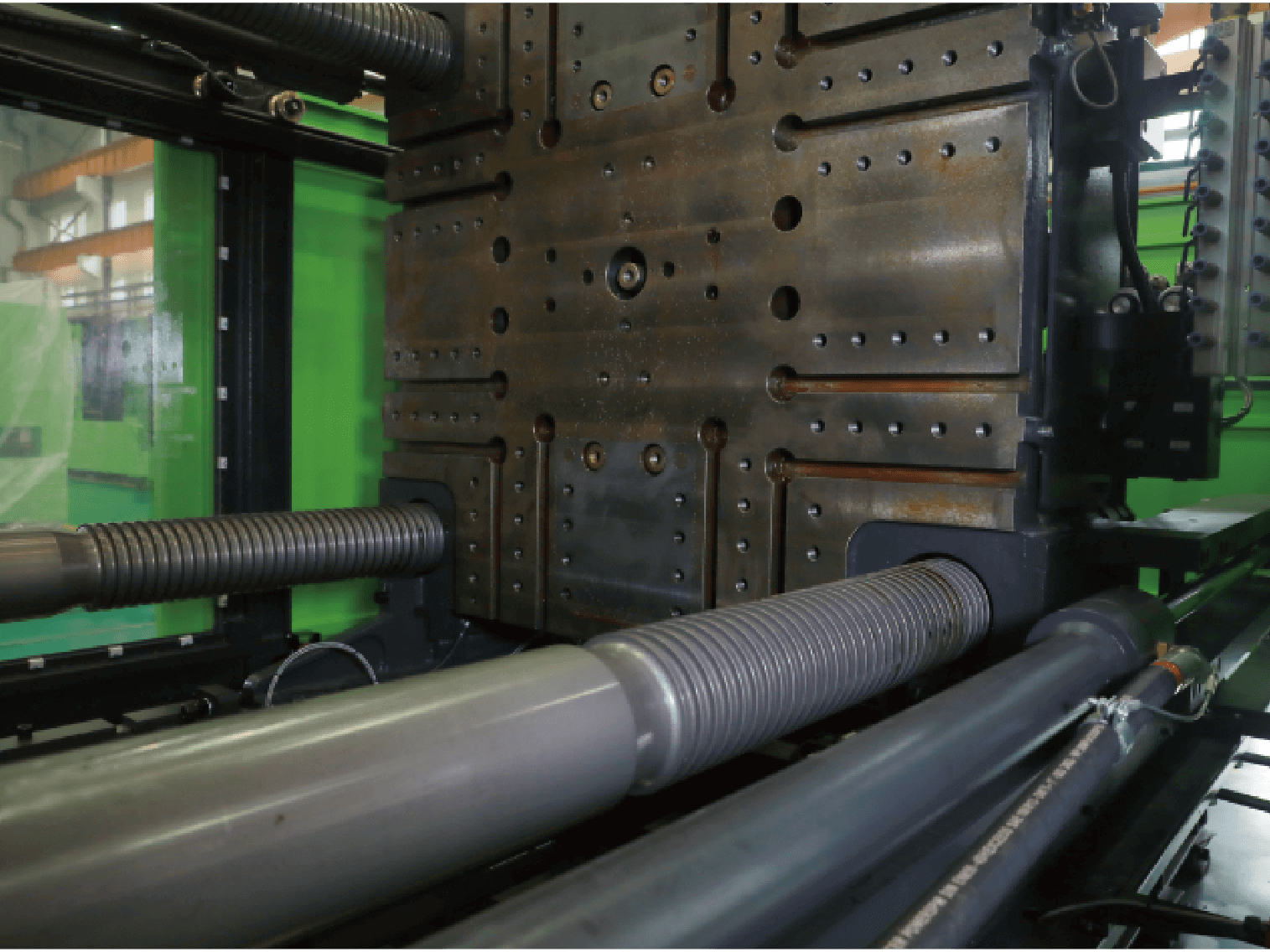

Highly-rigid extended platen supports
The movable platen is supported by exceptionally long, rigid
sliding shoes with the function of tilt adjustment and L-shape guide design, providing steady support and precise guidance for large molds.
sliding shoes with the function of tilt adjustment and L-shape guide design, providing steady support and precise guidance for large molds.
Automatic tie bar retraction
The automatic tie bar retraction function is optional and
designed with stability and reliability. It can remove the
restriction of factory ceiling height
designed with stability and reliability. It can remove the
restriction of factory ceiling height
Injection Unit

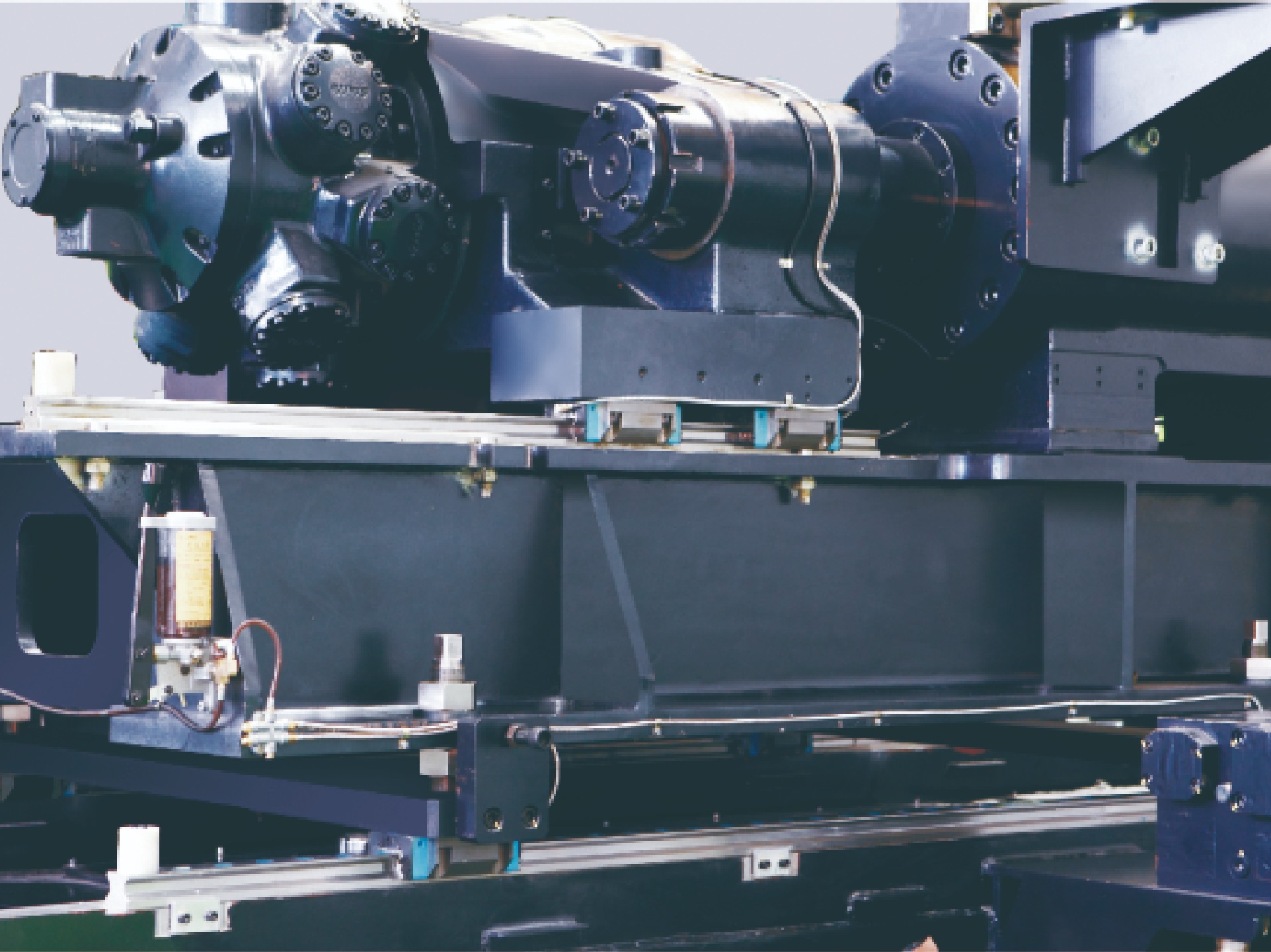

Carriage supports and linear guide rails
High-rigidity carriage supports and double-deck guide rails are designed with low resistance and ensure high injection precision.
Ultrasonic digital displacement sensor
Injection and injection carriages are equipped with ultrasonic displacement sensors which are resistant to interference and durable, with measurement accuracy up to 0.001%/F.S
Injection carriage cylinder
Two injection carriages are parallel located. The universal coupling used for connection ensures stable nozzle contact and no plastic leak.
Hydraulic System

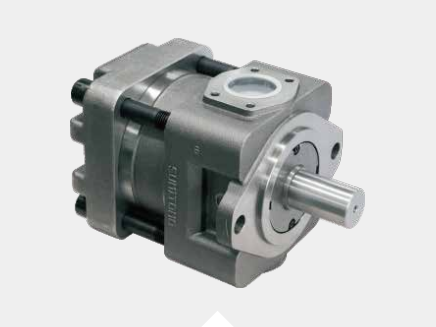

- The excellent performance of DP series benefits from the high-performance Ecoservo drive technology and the piston variable pump, which has strong power, fast response, little internal leak and significant energy savings.
- The drive system and injection unit will be matched in the form of modules so as to customize the power for machine and minimize energy loss.
- Mold opening during plasticizing, ejection or core pulling is a standard feature that reduces cycle time.
- The drive system and injection unit will be matched in the form of modules so as to customize the power for machine and minimize energy loss.
- Mold opening during plasticizing, ejection or core pulling is a standard feature that reduces cycle time.

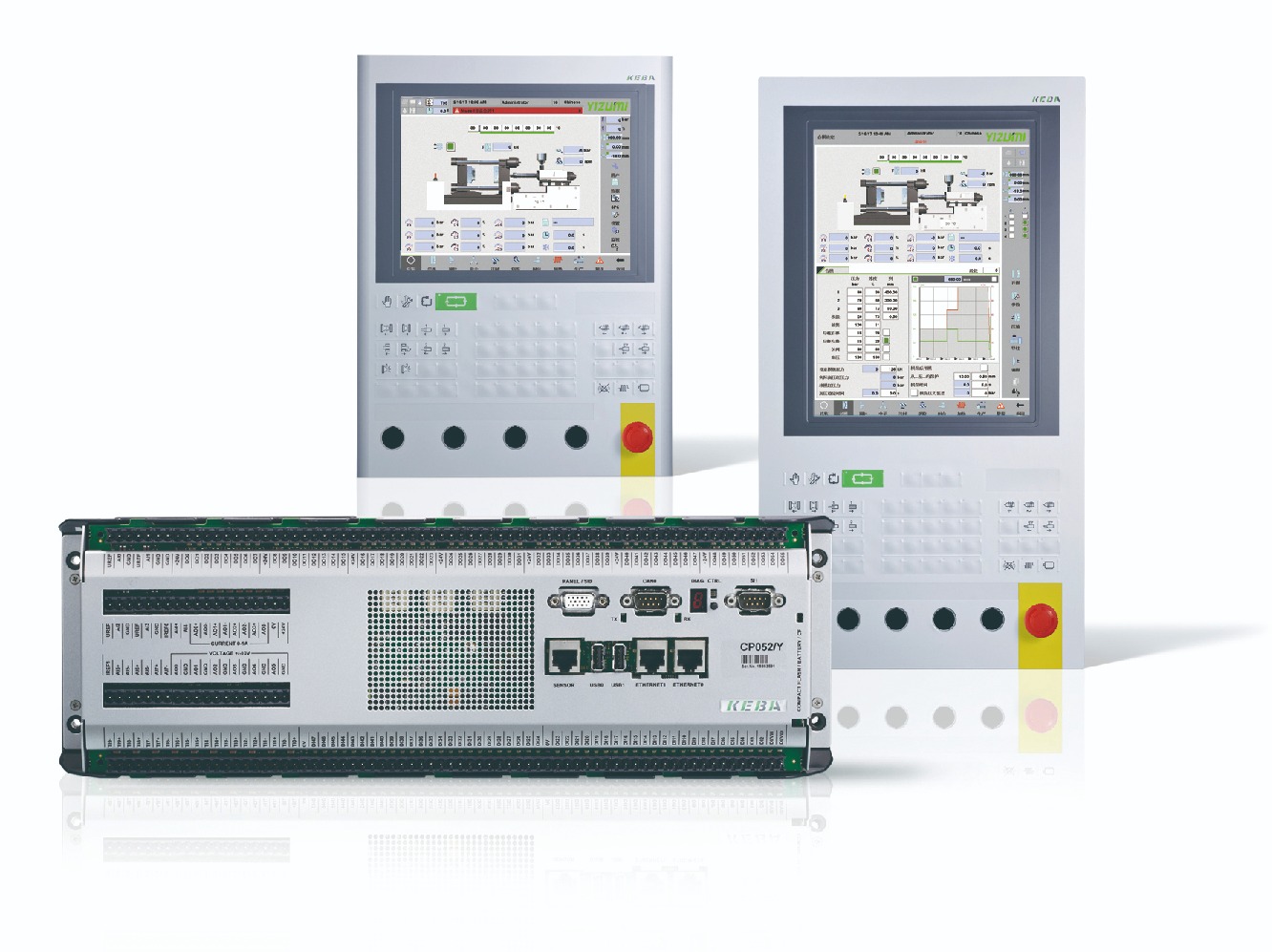

European KEBA Controller
- DP series employs Austria's KEBA control system with user-friendly interface and higher processing speed. It is also powerful and capable of providing multiple control software solutions for special processes.
- 15” TFT color touch screen, visualized graphic parameter setting, actual parameter values recorded and displayed with curves, more accurate online process analysis.
- Free programming is available to meet the needs of special molds and processes. The sequence of machine movements also can be freely edited.
- Extensible I/O modules can integrate with more functions, including temperature control and sequence valve as needed.
- Communication ports for printer, auxiliary equipment and automation.
- 15” TFT color touch screen, visualized graphic parameter setting, actual parameter values recorded and displayed with curves, more accurate online process analysis.
- Free programming is available to meet the needs of special molds and processes. The sequence of machine movements also can be freely edited.
- Extensible I/O modules can integrate with more functions, including temperature control and sequence valve as needed.
- Communication ports for printer, auxiliary equipment and automation.
Product Video
Industry Application
Relevant Recommendation
Relevant Products
Relevant Technologies
D1-N Series Two-platen Injection Molding Machine
The YIZUMI Advanced Series, with cutting-edge German technology and extensive expertise, leads in large-tonnage two-platen injection molding machines. Our innovative approach aims to set a benchmark in this transformative field. Clamping forces range from 5,500 to 44,000 US tons.
FF Series Electric Injection Molding Machine
This series surpasses traditional machine standards, facilitating seamless automation and intellectualization integration for improved quality consistency and efficiency. Superior in thickness, precision, and complexity, it meets demanding core product needs. Clamping forces range from 900 to 13,800 kN.
D1M Series Two-platen Multi-component Injection Molding Machine
YIZUMI MultiPro offers multi-component molding with advanced technology, simplifying production with one step. Leading in this field, YIZUMI provides high-end solutions. Clamping forces: 5,000-24,000 kN.
Uniform stress distribution control technology of tie bars
With special technical treatment, tie bars are highly-rigid and resistant to wear and corrosion. Uniformity of stress distributed on tie bar threads is over 99% without unbalanced force, bringing durability.
Adaptive PID temperature control technology
With the use of durable ceramic heater bands and adaptive PID control performed by the Austrian controller. temperature control accuracy is up to ±0.5℃.
Fully oil-cooled two-headed motor-driven servo control technology
The fully oil-cooled two-headed motor-driven servo system is the quintessence of highly-integrated servo pump system. It eliminates the influence of instability in machine operation due to the work environment and further reduces energy consumption of hydraulic circuit. Synchronized drive technology makes hydraulic circuit response faster and movements more efficient.
