Precise and Stable
Compact design with high-precision linear guide, independent platen support, and servo direct control (SDC) technology for micro-level injection molding precision.
Reliable
Fully-hardened alloy plasticizing components, dust-proof electrical cabinet, and high-rigidity frame structure ensure stable, automation-friendly production with significant energy savings.
Intelligent
High-performance intelligent control system with dual-encoder feedback and micron-level injection control accuracy.

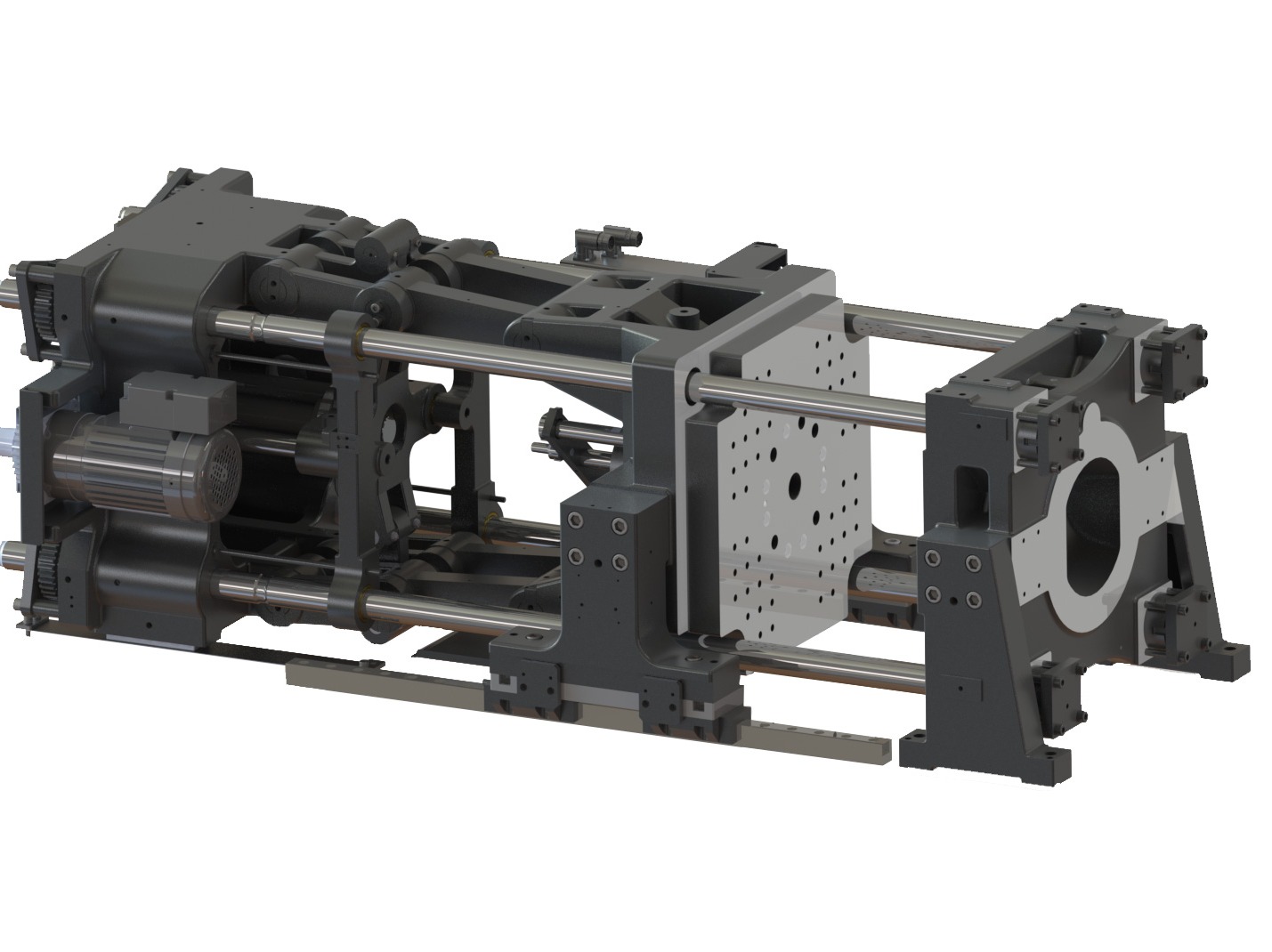

Clamping Unit
Independent platen support structure
- The mold incorporates a central support structure, thus avoiding the vertically asymmetric deformation caused by fixing method. This innovation achieves a 17% reduction in deformation, more uniform platen pressure, and significantly higher clamping precision than conventional clamping unit.
- High-stability Tie Bar Free (TBF) technology: The clamping unit adopts the TBF technology for easy operation and maintenance.
- High-rigidity platen design: High-rigidity platen made of high-strength cast material, suitable for precision molds.
The optional dual-mold structure for movable platen avoids platen surface deformation, reducing deformation in the mold area by 50% and making it ideal for high-precision molding.
- High-stability Tie Bar Free (TBF) technology: The clamping unit adopts the TBF technology for easy operation and maintenance.
- High-rigidity platen design: High-rigidity platen made of high-strength cast material, suitable for precision molds.
The optional dual-mold structure for movable platen avoids platen surface deformation, reducing deformation in the mold area by 50% and making it ideal for high-precision molding.
High-precision linear guide for mold moving
- Guiding accuracy <= 0.01 mm; fast and stable mold opening, mold opening position repeatability <= 0.02 mm.
- Superior platen parallelism and guiding accuracy for precision manufacturing applications. Straightness <= 0.01mm (for specific stroke).
- Optimized platen rigidity: Minimized platen deformation fully ensures balanced force distribution at the center of precision mold, guaranteeing product consistency. Platen parallelism <= 0.02mm.
- Superior platen parallelism and guiding accuracy for precision manufacturing applications. Straightness <= 0.01mm (for specific stroke).
- Optimized platen rigidity: Minimized platen deformation fully ensures balanced force distribution at the center of precision mold, guaranteeing product consistency. Platen parallelism <= 0.02mm.

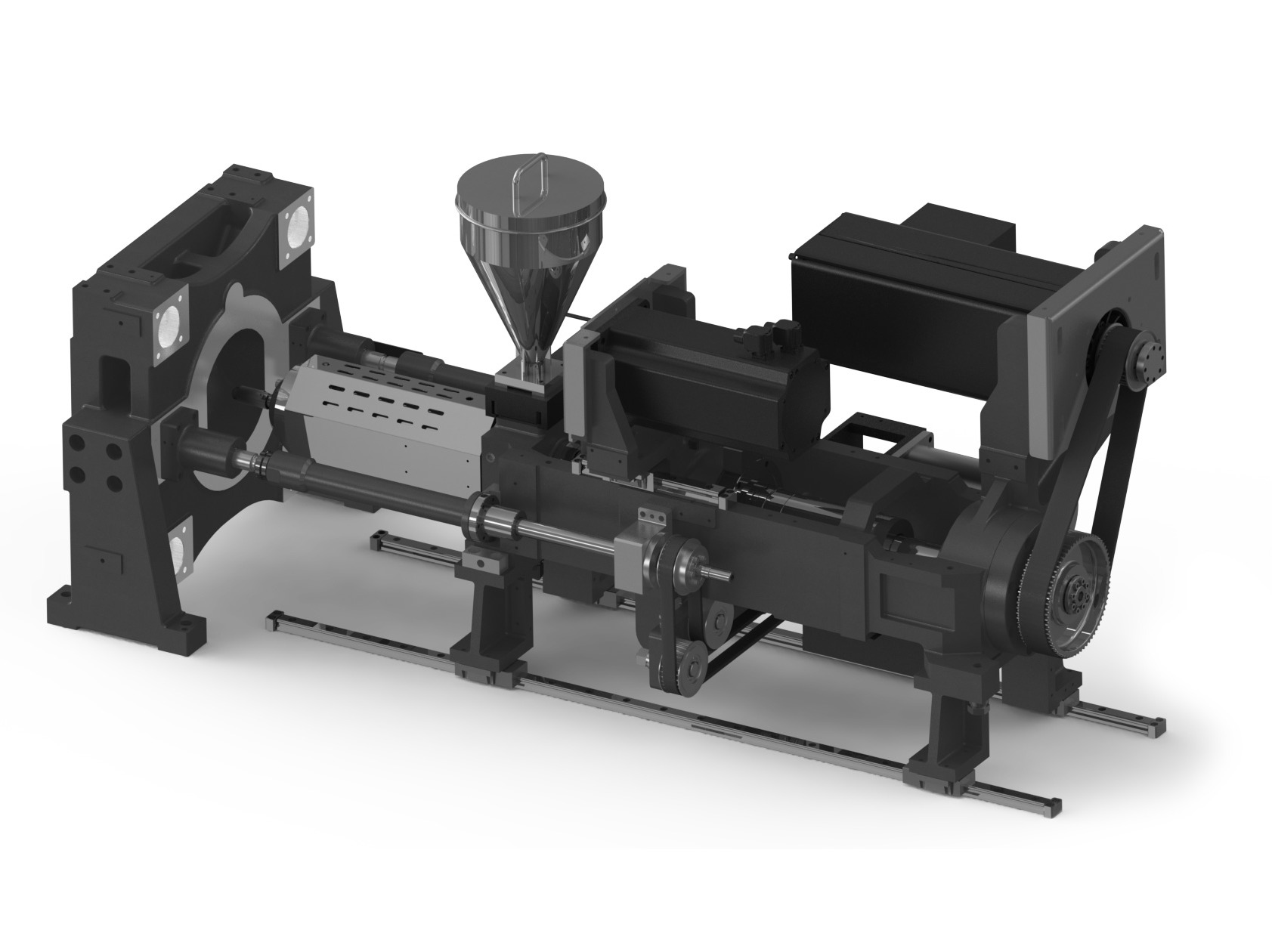

Injection Unit
Special screw and barrel components for different materials
- The barrel assembly is made of imported fully-hardened alloy and features an optimized screw design with precision machining. The screw straightness reaches 0.02 mm/m, ensuring stable and efficient plasticizing performance.
- From general-purpose resins to engineering plastics, we offer customized solutions such as high-wear-resistant, high-corrosion-resistant, and low-shear screws for optical products, precisely matching diverse material molding requirements.
- Micro injection unit: Screw diameter selectable from 14-22 mm, injection volume 7.5-29.3 cm3, meeting micro-product injection molding requirements.
- Optimized cushion stroke, check ring, and barrel gap ensure more precise and stable molding. Remaining resin prevention design effectively prevents resin residue in the nozzle.
- From general-purpose resins to engineering plastics, we offer customized solutions such as high-wear-resistant, high-corrosion-resistant, and low-shear screws for optical products, precisely matching diverse material molding requirements.
- Micro injection unit: Screw diameter selectable from 14-22 mm, injection volume 7.5-29.3 cm3, meeting micro-product injection molding requirements.
- Optimized cushion stroke, check ring, and barrel gap ensure more precise and stable molding. Remaining resin prevention design effectively prevents resin residue in the nozzle.
High-precision closed-loop temperature control
The self-tuning PID algorithms and independent PID control deliver precise control to meet gradient temperature control requirements in the molding process.
Static deviation +/-0.2 degrees C.
Static deviation +/-0.2 degrees C.
Double-ball-screw nozzle contact device
- The nozzle contact force is evenly distributed, preventing fixed platen tilting and effectively preventing the risk of material leakage.
- The nozzle maintains uniform and stable contact force against the mold surface, preventing material leakage while reducing minimizing deformation of the fixed platen caused by uneven force distribution, thereby ensuring stable products.
- The nozzle maintains uniform and stable contact force against the mold surface, preventing material leakage while reducing minimizing deformation of the fixed platen caused by uneven force distribution, thereby ensuring stable products.
Unique servo direct control (SDC) technology
- Process algorithm independently developed by YIZUMI for the servo drive. Four servo motors control injection, plasticizing, clamping, and ejection independently, allowing faster feedback, more responsive control, and improved control accuracy.
- More precise control of speed, position and pressure to meet the requirements of precision equipment, with a response speed of 0.125 ms.
- Micron-level injection control accuracy.
- More precise control of speed, position and pressure to meet the requirements of precision equipment, with a response speed of 0.125 ms.
- Micron-level injection control accuracy.
Dual-encoder feedback control
- Embedded incremental rotary encoder for mold adjustment control.
- Traditional mold adjustment uses proximity switches to detect gear counts, resulting in low precision. The FF series adopts an embedded incremental rotary encoder, generating 400 pulses per revolution, greatly improving mold adjustment precision.
- Traditional mold adjustment uses proximity switches to detect gear counts, resulting in low precision. The FF series adopts an embedded incremental rotary encoder, generating 400 pulses per revolution, greatly improving mold adjustment precision.
High-precision closed-loop control of injection pressure
- Injection control is more precise, ensuring stable and reliable molding.
- The injection and holding pressures maintain a stability accuracy of +/-0.1 MPa.

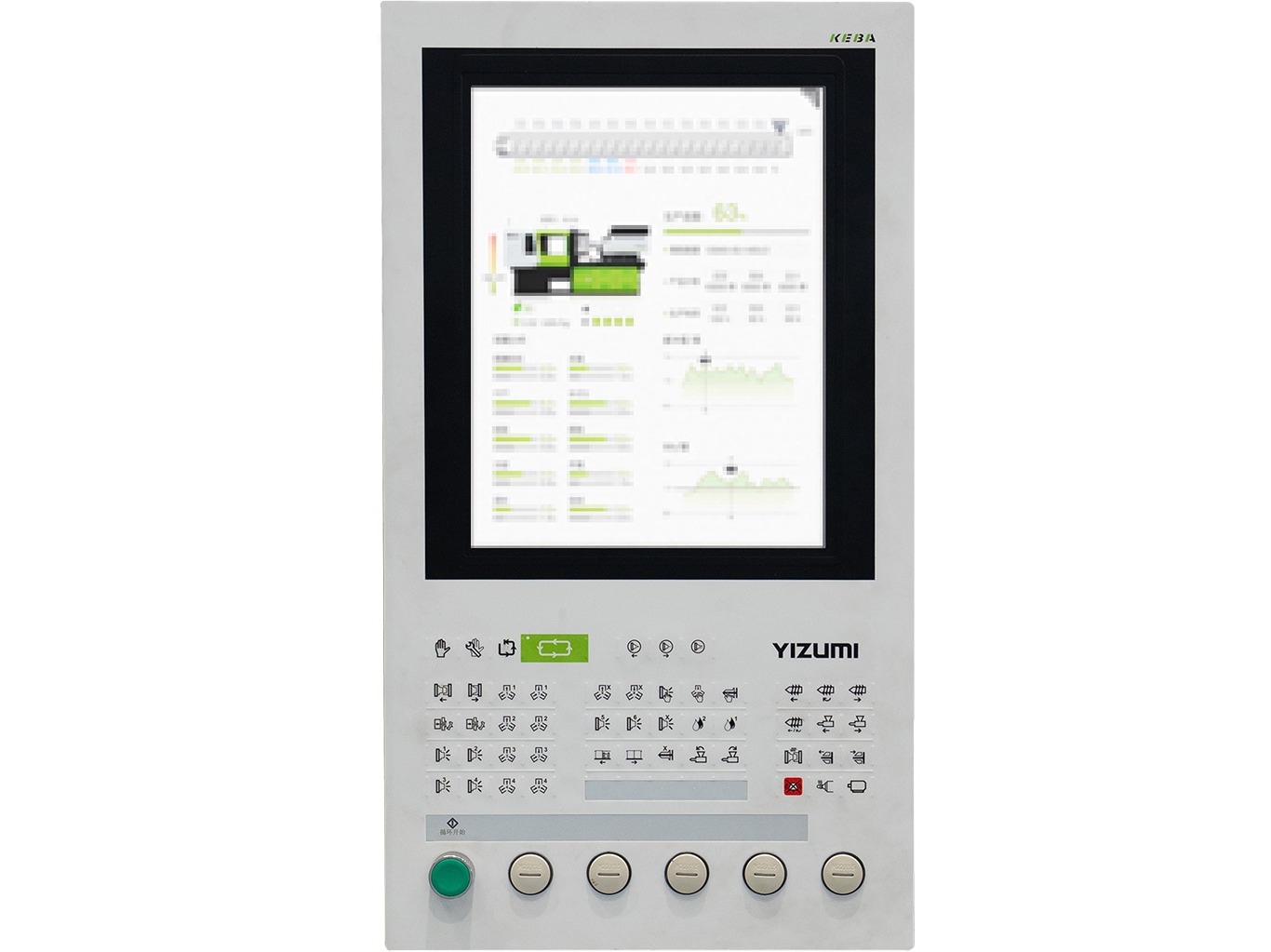

- High-end European KEBA i2985 controller: The powerful system is easy to operate and ideal for the high-performance solutions for electric injection molding machines. 15-inch HD color touchscreen display. Standard Process quality control (PDP), and Statistical process control (SPC) features. 1ms scan cycle.
- The injection and holding pressures maintain a stability accuracy of +/-0.1 MPa.
- High-end European KEBA i2985 controller: The powerful system is easy to operate and ideal for the high-performance solutions for electric injection molding machines. 15-inch HD color touchscreen display. Standard Process quality control (PDP), and Statistical process control (SPC) features. 1ms scan cycle.
Product Video
Industry Application
Relevant Recommendation
Relevant Products
Relevant Technologies
Relevant Automation
FF-M Series Injection Molding Machine Special for Medical Industry
YIZUMI injection molding machine for the medical industry offers advanced injection molding solutions and services for various products, including production consultation, research, development, and scale production. YIZUMI is your trusted partner! Clamping forces range from 150 to 3,800 kN.
FF Series Electric Injection Molding Machine
Electric Injection Molding Machine FF Series surpasses traditional machine standards, facilitating seamless automation and intellectualization integration for improved quality consistency and efficiency. Superior in thickness, precision, and complexity, this electric injection molding equipment meets demanding core product needs. Clamping forces range from 900 to 13,800 kN.
ICM Low Pressure Injection Molding Technology
With response precision of ±0.015mm/2ms and automatic template parallelism correction control, SmartClamp, an intelligent clamping technology, is ideal for vehicle interior parts production like the sunroof and woven fabric in molds.
Stack Mold Technology
1. Improved efficiency of 30-80%, estimated according to different production processes.
2. Less demand on equipment and operators, space saving.
3. Effective control of color differences caused by the same injection molding machine.
4. Simultaneous production of different shapes of parts.
5. Automated assembly is easier through uniform shrinkage and deformation after a set of workpieces are produced simultaneously.
Flap Folding And Protective Film Application
The flap folding and protective film application system integrates the flap folding and film application of food packaging processes. It has achieved a linked operation with the injection molding machine, effectively reducing the manual operation time and providing customers with a better and more convenient product experience.
Wheel Eyebrow Strip
YIZUMI's wheel eyebrow strip installer is a special equipment for affixing the left and right automotive wheel eyebrow adhesive strips. The main unit of the system adopts a dual-station turntable. Materials are placed onto the equipment fixture manually. Using a two-hand start, the 6-axis robot palm is equipped with automatic adhesive application, drying, and automatic sticker affixing modules to achieve a fully automatic operation. It significantly improves production efficiency while reducing the workload of operators and operating costs.
Surface Planeness Testing
YIZUMI robot automation solutions for plastics injection molding offer rapid, accurate surface planeness testing, improving production precision and efficiency.
Service Process
01
Process/Mold Analyse and Design
- Raw materials selection
- Product design
- Mold flow analysis
- Mold design suggestion
02
Equipment Selection Suggestions
- Product performance
- Product quality
- Ease of use
- Safety requirements
03
Whole Plant Planning Advice
- Planning of production line
- Arrangements for people, machines, and materials according to process flow
- Peripheral automation
- Smart connection
04
Delivery Solutions
- Professional installation and debugging
- On-site operation training
- Molding process training
05
After Sales Solutions
- YFO services
- Preventive maintenance
- Device upgrade

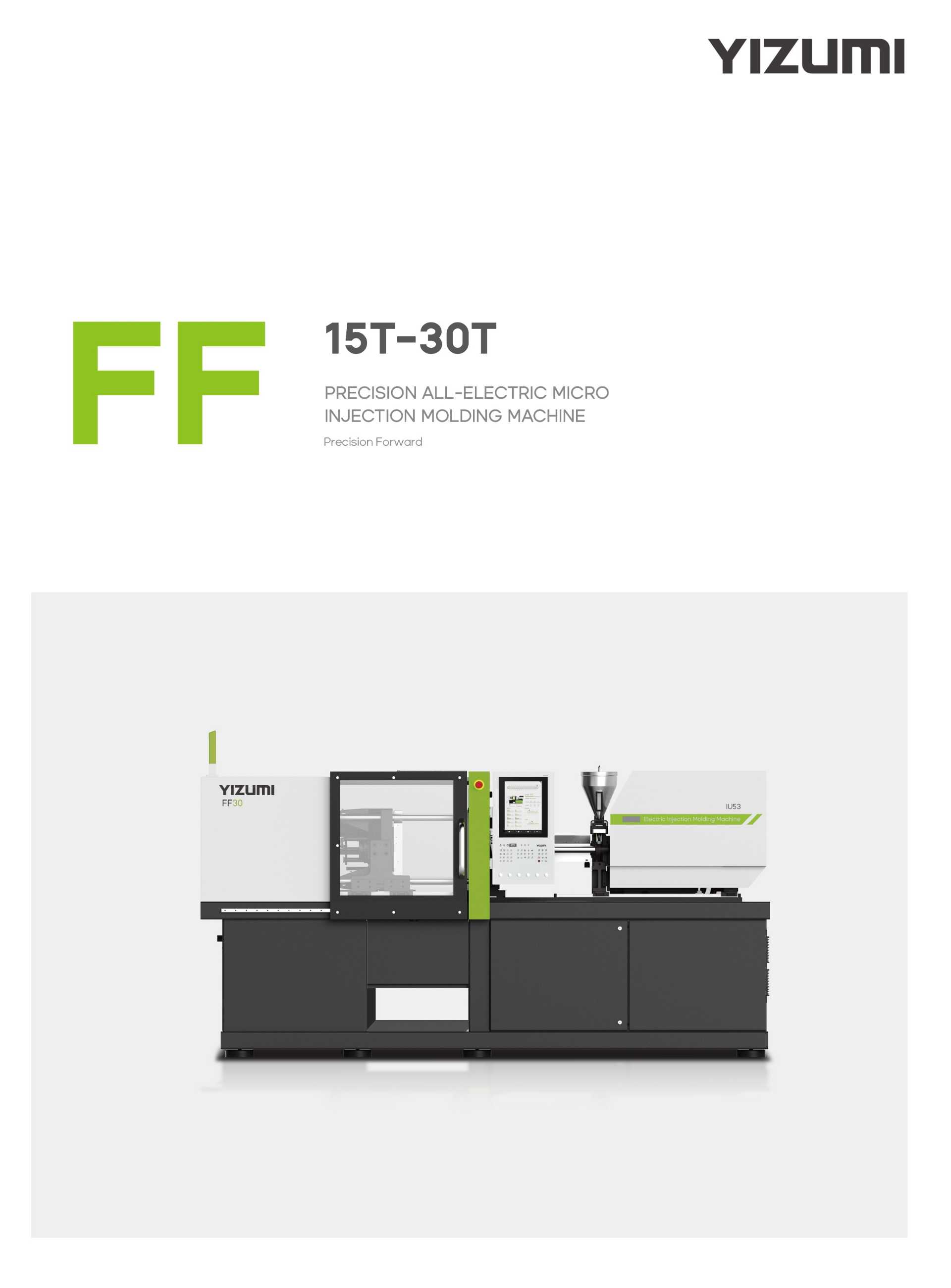

Download
