More Efficient
20% faster dry cycle, ±0.07mm mold opening repeatability, and 30%-50% energy savings from direct drive electric plasticizing.
More Reliable
High-rigidity clamping unit and high-load machine frame ensure long-lasting performance even under high-speed, high-pressure, and heavy-duty operating conditions.
More Intelligent
KEBA controller with intelligent mold protection and clamping force monitoring automatically detects anomalies and reduces defect rates.
Clamping Unit
TBF (Tie Bar Free) Technology
Non-contact movement between the movable platen and tie bars eliminates friction, reducing energy consumption and improving energy efficiency.
No lubrication is required, minimizing wear and maintenance costs. The mold area remains clean and oil-free, preventing product contamination.
No lubrication is required, minimizing wear and maintenance costs. The mold area remains clean and oil-free, preventing product contamination.

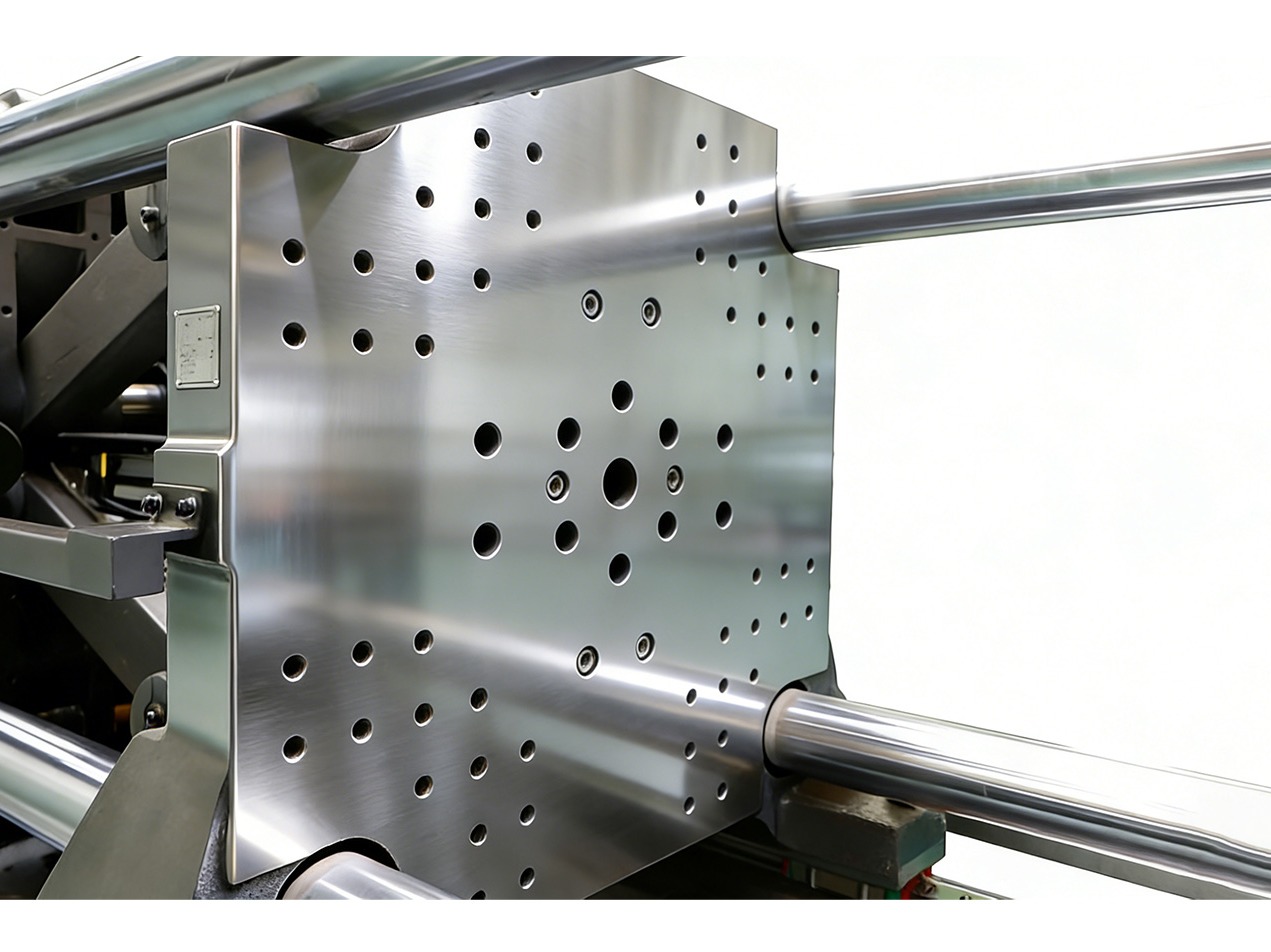

High-Rigidity Clamping Unit
Robust and durable design minimizes platen deformation, ensuring long-lasting performance even under high-speed, high-pressure, and heavy-duty operating conditions.
High-precision platen parallelism ensures reliable mold protection.
High-precision platen parallelism ensures reliable mold protection.
Linear Guides for Movable Platen
Low friction resistance enables smooth movement and high operating precision, ensuring platen parallelism to meet the requirements of precision molds.
Fast and stable mold opening/closing with end position repeatability of ±0.07mm.
Fast and stable mold opening/closing with end position repeatability of ±0.07mm.

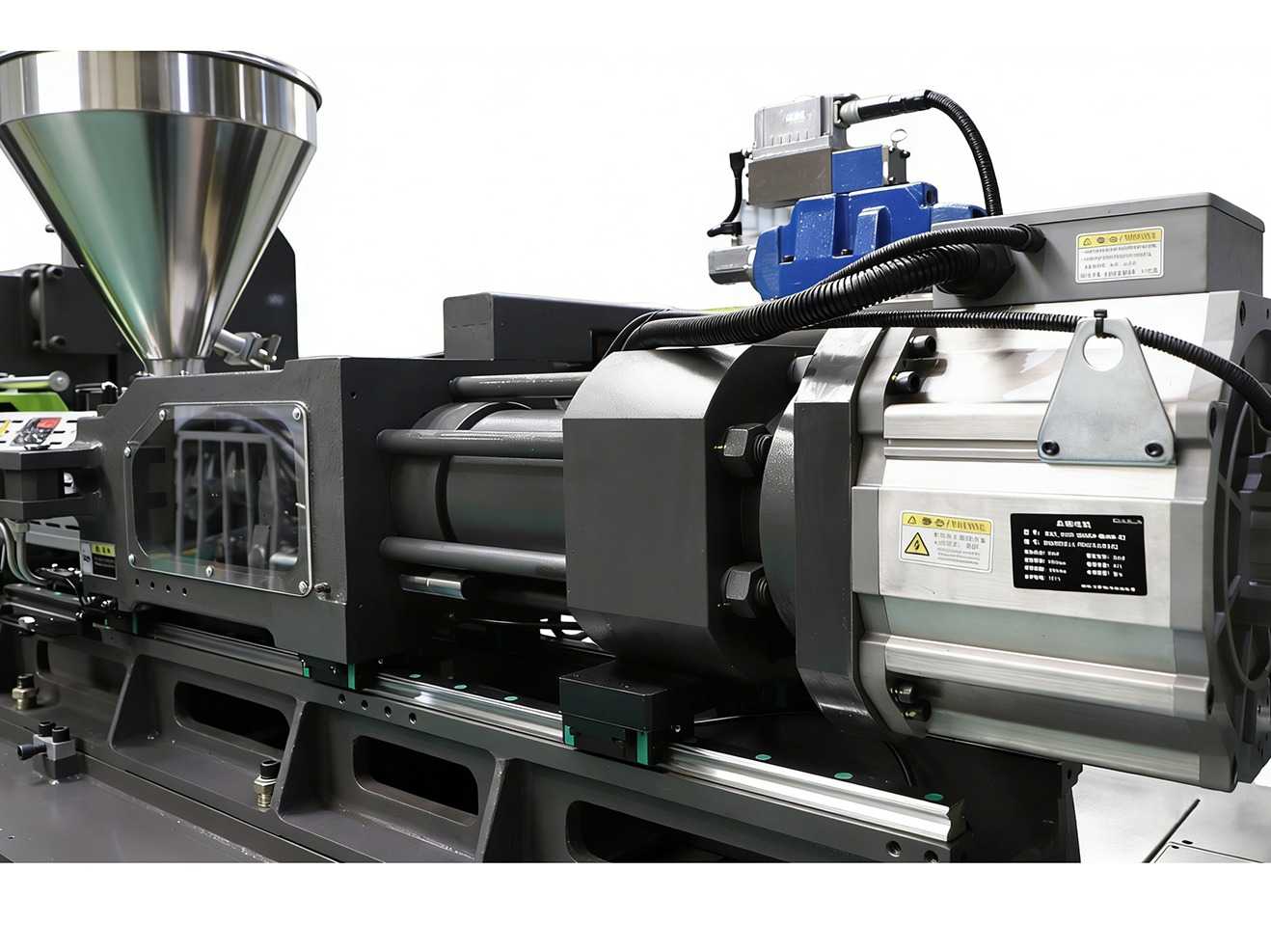

Injection Unit
Single-Cylinder Injection Unit
Single-cylinder injection unit design with low inertia enables fast acceleration, high injection repeatability, and optional max. injection speeds of up to 1000 mm/s.
Nitrogen Servo Injection
Fast acceleration response and high injection repeatability. Acceleration response time <30ms.
Direct Drive Electric Plasticizing
The technology delivers energy-efficient and environmentally friendly operation, reducing energy consumption by 30%-50% compared with hydraulic plasticizing. Low noise, low energy consumption.

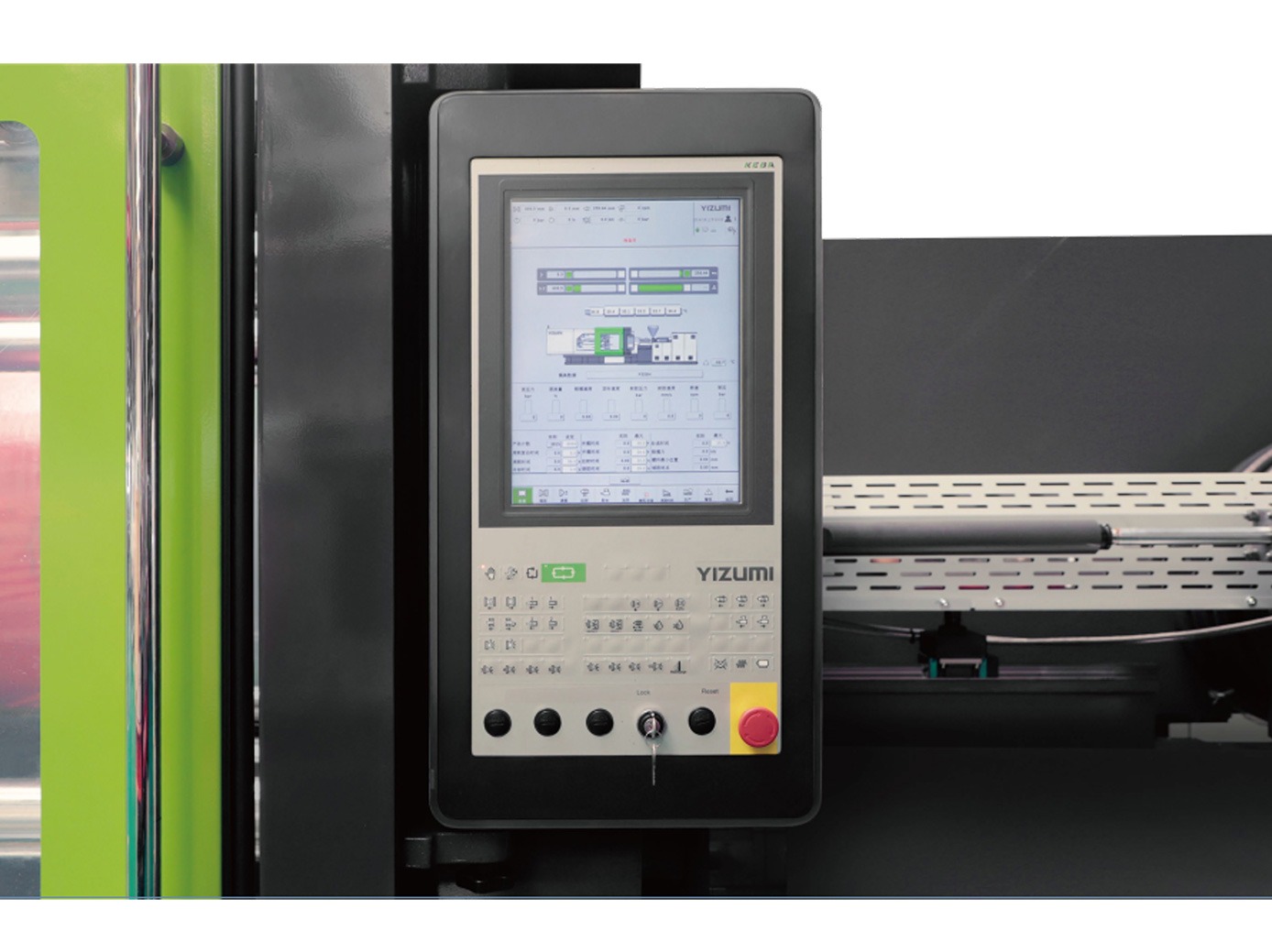

Control System
Intelligent Mold Protection
Paired with next-generation servo control technology and high-sensitivity, low-pressure mold protection, it ensures safety for precision molds.
Clamping Force Monitoring
This standard feature automatically checks each cycle, detects anomalies early, and effectively reduces defect rates.
Product Video
Industry Application
Relevant Recommendation
Relevant Products
Relevant Technologies
Relevant Processes
P-E Series High-speed Injection Molding Machine
The P-E Series High-speed injection molding machines feature servo motors and efficient transmission, offering 30-50% energy savings compared to standard models (depending on conditions). With a built-in hydraulic pump station, they provide flexibility for various mold processes. The fast dry cycle time of 2-2.6 seconds ensures enhanced production efficiency. Clamping forces range from 200 to 350 tons.
P Series High-speed Injection Molding Machine
High-speed Injection Molding Machine P Series is the top choice for crafting multi-cavity, thin-wall packaging items, meeting the demands of thin-wall containers and enhanced production efficiency. Yizumi provides tailored turnkey solutions of injection molding machines for diverse clients. Clamping forces range from 2,500 to 5,500 kN.
PS5 Series High-Speed Injection Molding Machine
The fifth-generation PS5 Series High-Speed Injection Molding Machines are tailored for industries demanding speed and precision, ideal for food packaging, medical disposables, bottle caps, and daily chemical products. Featuring an optimized control system, enhanced cylinder sealing, and high-rigidity platens, this high-speed injection molding equipment delivers consistent, high-speed performance with max. injection speeds of up to 550 mm/s. Clamping forces range from 2,800 to 5,600 kN.
Inovance Iventure System
1. Including Inovance controller, servo drive and high-response motor.
2. Communication between the controller and the drive upgrades to digital type. Same brand controller and drive show better performance, faster and more accurate.
3. Quick and stable mold opening, smooth mold closing with no impact, less wear and tear to machine.
4. Mold opening repeatability is within ±0.5mm, with overshoot less than 2.0mm.
5. Deviation of injection end position is less than 0.25mm.
6. Deviation of material feeding position is less than 0.2mm.
7. Temperature overshoot of first-time heating is less than 3℃, within ± 1℃.
Synchronous plasticizing
1. The plasticizing is synchronized with the cooling, mold opening and part picking, shorter cycle time.
2. PAC380K3 and above model are generally equipped with hydraulic synchronous plasticizing function, which shortens the product molding cycle.
Optimized clamping unit
1. The upgraded clamping unit can provide larger clamping force, better facilitating the molding of thin-wall and deep-cavity products.
2. Platen, tie bars and machine frame of better mechanical properties can better improve the rigidity of the whole machine and reduce deformation.
3. The rigidity of overall mold locking is increased by more than 25%.
FoamPro
Developed based on the MuCell process, it can be equipped with aircraft-grade aluminum alloy mold technology, ceramic coating technology, and FLEXflow servo needle valve runner system to achieve maximum product weight reduction while still performing at its best.
Stack Mold Technology
1. Improved efficiency of 30-80%, estimated according to different production processes.
2. Less demand on equipment and operators, space saving.
3. Effective control of color differences caused by the same injection molding machine.
4. Simultaneous production of different shapes of parts.
5. Automated assembly is easier through uniform shrinkage and deformation after a set of workpieces are produced simultaneously.
FoamPro-Chem
Developed based on the chemical foaming process, it can be equipped with Core-Back precision mold opening and other technologies to achieve maximum product weight reduction while still performing at its best.
Service Process
01
Process/Mold Analyse and Design
- Raw materials selection
- Product design
- Mold flow analysis
- Mold design suggestion
02
Equipment Selection Suggestions
- Product performance
- Product quality
- Ease of use
- Safety requirements
03
Whole Plant Planning Advice
- Planning of production line
- Arrangements for people, machines, and materials according to process flow
- Peripheral automation
- Smart connection
04
Delivery Solutions
- Professional installation and debugging
- On-site operation training
- Molding process training
05
After Sales Solutions
- YFO services
- Preventive maintenance
- Device upgrade
