More Efficient
Dry cycle time improved 8%-25% with a brand-new energy-saving hydraulic system and optimized power design.
More Precise
Mold opening positioning accuracy <1mm with end position repeatability of ±0.6mm, powered by self-adaptive control technology.
More Intelligent

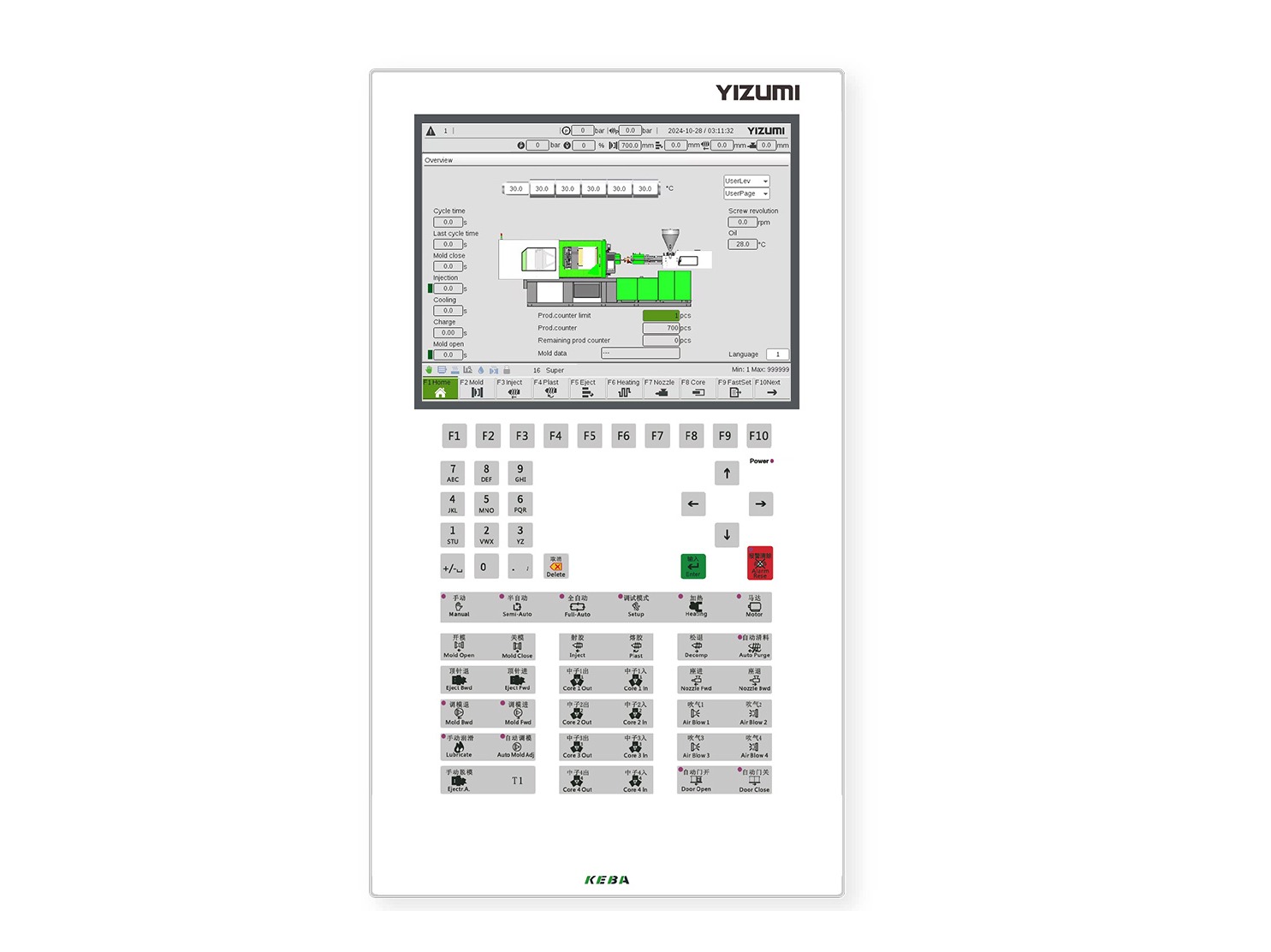

KEBA controller standard for all models, featuring intelligent clamping force management and energy consumption visualization.
Clamping Unit

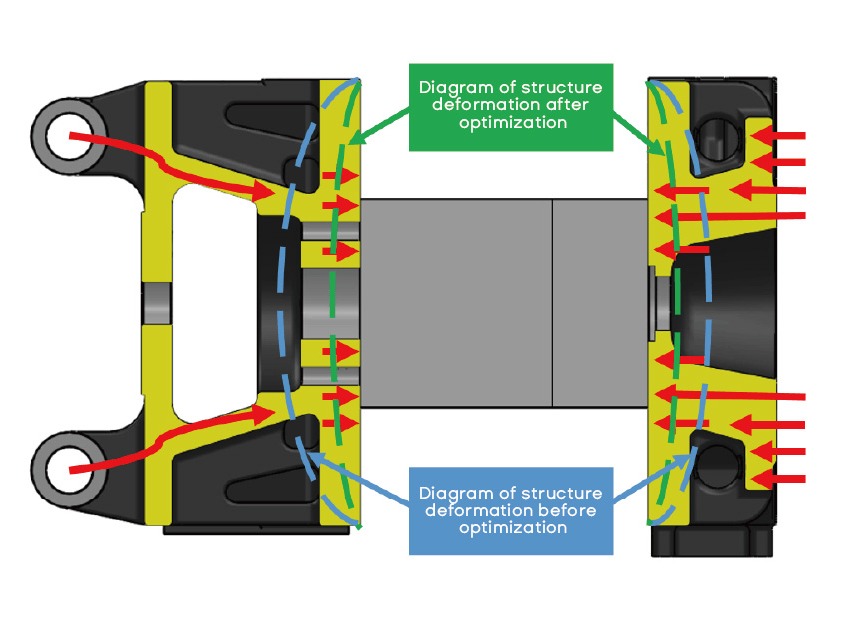

Uniform Mold Compression Technology
Fully upgraded TP5 series platen adopts uniform mold compression technology (YIZUMI's patented structure, Patent No.: ZL202321094203.2).
Increased platen center thickness for enhanced rigidity and reduced deformation (overall deformation of movable platen reduced by 5%-20%).
Significantly improved clamping force utilization, optimizing product molding.
Higher strength, lighter structure, and lower clamping force, extending service life of both molds and machines.
Increased platen center thickness for enhanced rigidity and reduced deformation (overall deformation of movable platen reduced by 5%-20%).
Significantly improved clamping force utilization, optimizing product molding.
Higher strength, lighter structure, and lower clamping force, extending service life of both molds and machines.
Intelligent Mold Opening
Simplified mold opening parameters setting for improved efficiency.
The mold opening and closing are intelligently generated and optimized, resulting in smoother movements and high positioning accuracy (0-1mm).
The mold opening and closing are intelligently generated and optimized, resulting in smoother movements and high positioning accuracy (0-1mm).
Graphite Solid Lubricant
New graphite steel bushing standard for TP5 series. By analyzing actual load characteristics through simulation, the graphite distribution has been optimized to achieve the best self-lubrication performance.
Lubrication frequency has been reduced from once every 300 cycles to once every 800 cycles, significantly decreasing lubricant consumption.
Lubrication frequency has been reduced from once every 300 cycles to once every 800 cycles, significantly decreasing lubricant consumption.
Injection Unit

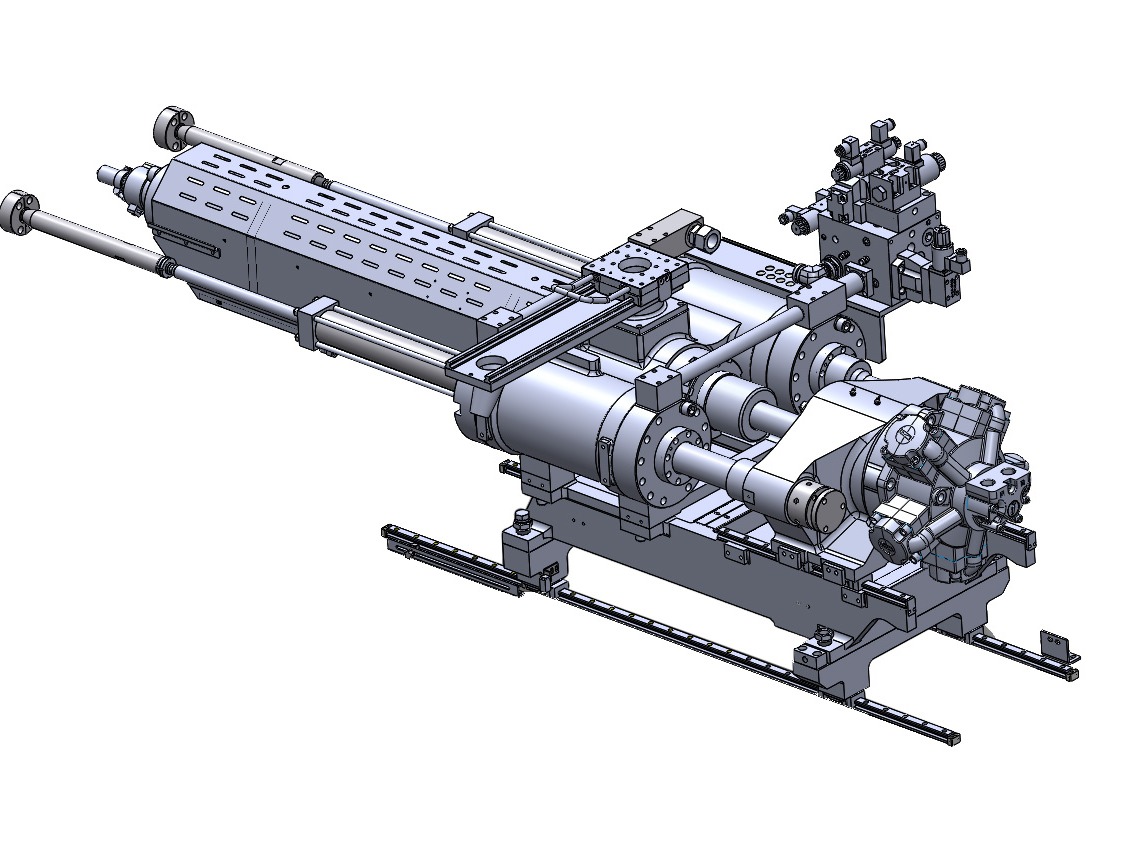

Integral Dual-Layer Support for Injection Unit
TP5 series features integral dual-layer support for injection unit as a standard configuration, with dual linear guides for both carriage and injection.
Lower resistance in injection process enables improved energy efficiency, faster response and more accurate control.
Lower resistance in injection process enables improved energy efficiency, faster response and more accurate control.
Chrome-Plated Screw
Chrome-plated screw enhances wear resistance and improves plasticizing quality.
Optimized screw tip, check ring, and screw washer design further improves injection weight repeatability. Increased screw rotation speed boosts plasticizing capacity by 5-10%.
Optimized screw tip, check ring, and screw washer design further improves injection weight repeatability. Increased screw rotation speed boosts plasticizing capacity by 5-10%.
Hydraulic System

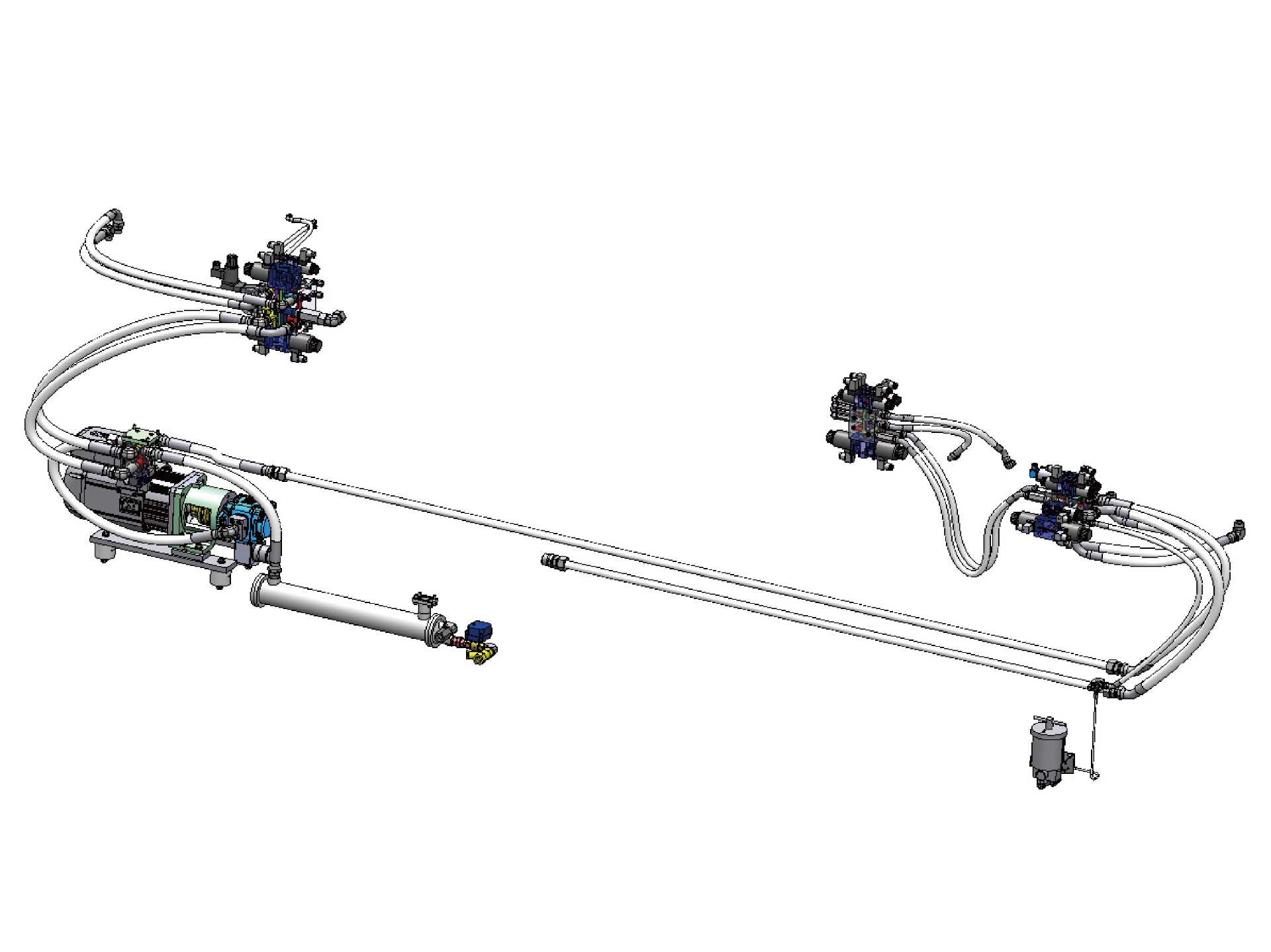

New Energy-Efficient Hydraulic System
Energy-efficient hydraulic oil and fluid simulation technology are used to optimize the hydraulic system's circuits and pipelines.
This results in improved energy efficiency, faster response time, and higher control precision.
The optimized hydraulic system effectively reduces injection pressure loss, resulting in better effective injection pressure and improved product molding process.
This results in improved energy efficiency, faster response time, and higher control precision.
The optimized hydraulic system effectively reduces injection pressure loss, resulting in better effective injection pressure and improved product molding process.
Closed-Loop Oil Temperature Control
Independent closed-loop oil temperature control function offers improved system stability.
Electrical Control System
Intelligent clamping force management
TP5 series is equipped with intelligent clamping force management system, YIZUMI's advanced intelligent R&D innovation.
Intelligent clamping force management system proactively identifies and sets optimal clamping force, monitors and intelligently optimizes clamping force parameters, enabling users to efficiently and conveniently operate the injection molding machine while improving the stability of product quality.
Standard functions of intelligent clamping force management system:
① Clamping force monitoring
② Intelligent clamping force sustaining
③ Pre-releasing of clamping force
Intelligent clamping force management system proactively identifies and sets optimal clamping force, monitors and intelligently optimizes clamping force parameters, enabling users to efficiently and conveniently operate the injection molding machine while improving the stability of product quality.
Standard functions of intelligent clamping force management system:
① Clamping force monitoring
② Intelligent clamping force sustaining
③ Pre-releasing of clamping force
Preventive monitoring and maintenance system for key components
TP5 series is equipped with preventive monitoring and maintenance function for key components, which provides timely reminders for machine maintenance and predicts potential abnormals, thus extending the machine's service life.
It offers intelligent real-time monitoring and detection for key components and indicators such as injection end position, clamping force, and the hydraulic system. With advanced algorithms, it identifies and alerts for potential risks, while also providing troubleshooting guidance.
It offers intelligent real-time monitoring and detection for key components and indicators such as injection end position, clamping force, and the hydraulic system. With advanced algorithms, it identifies and alerts for potential risks, while also providing troubleshooting guidance.
Intelligent energy management system
TP5 series is equipped with intelligent energy management system, enabling energy consumption data to be digitized and visualized.
24-hour energy consumption and production statistics
Energy consumption data of the mold is visually represented in real-time curves, serving as a reference for energy-saving and parameter optimization.
Users can input the electricity unit price for online measurement and display of energy cost for each product.
It shows real-time energy consumption changes, allowing a clear understanding of the relationship between each motion and energy use, which facilitates the optimization of process parameters.
24-hour energy consumption and production statistics
Energy consumption data of the mold is visually represented in real-time curves, serving as a reference for energy-saving and parameter optimization.
Users can input the electricity unit price for online measurement and display of energy cost for each product.
It shows real-time energy consumption changes, allowing a clear understanding of the relationship between each motion and energy use, which facilitates the optimization of process parameters.
