Stability & Precision
Efficiency & Energy Saving
Automation & Intellectualization
Clamping Unit
High stability of the TBF technology
The clamping unit adopts the TBF (Tie Bar Free) technology for easy operation and maintenance.
Keep the mold area clean to prevent product contamination. Faster dry cycle.
Keep the mold area clean to prevent product contamination. Faster dry cycle.
High-rigidity design of movable platen
Offer great rigidity and uniform distribution of force.
Suitable for injection molding with precision molds.
Platen parallelism (with load) ≤0.05mm(FE60-240).
Platen parallelism (with load) ≤0.08mm(FE300-380).
Suitable for injection molding with precision molds.
Platen parallelism (with load) ≤0.05mm(FE60-240).
Platen parallelism (with load) ≤0.08mm(FE300-380).
Unique "SMART" mold protection feature
Can detect very small obstacles and resistance.
Reduce the extent of mold damage when there are foreign objects in the mold cavity or faulty operation occurs.
Reduce the extent of mold damage when there are foreign objects in the mold cavity or faulty operation occurs.
Injection Unit

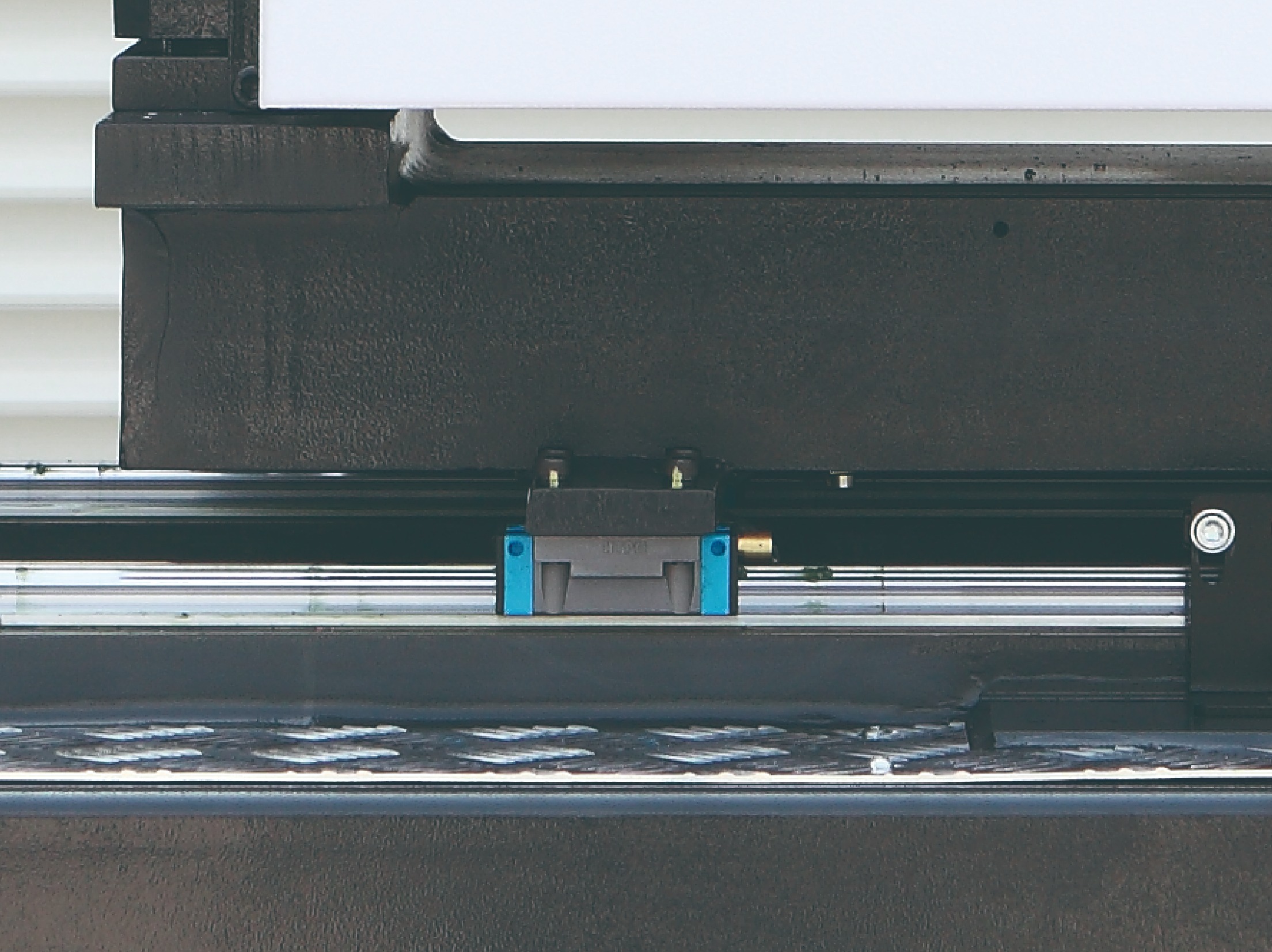

LGS Linear Guide Support technology
Integrated design enhances the overall rigidity of the injection unit.
No unnecessary friction. Fast forward and backward.
No unnecessary friction. Fast forward and backward.
Closed loop injection pressure control technology
Provide more accurate control for more stable, reliable and precise molding.
The stability precision of injection pressure and holding pressure is at ±0.1 Mpa.
The stability precision of injection pressure and holding pressure is at ±0.1 Mpa.
Dedicated screws for different materials
DIN standards for barrel unit size, processing accuracy, surface finish, and material selection. Increase the repeatability of injection.
Electrical Control System

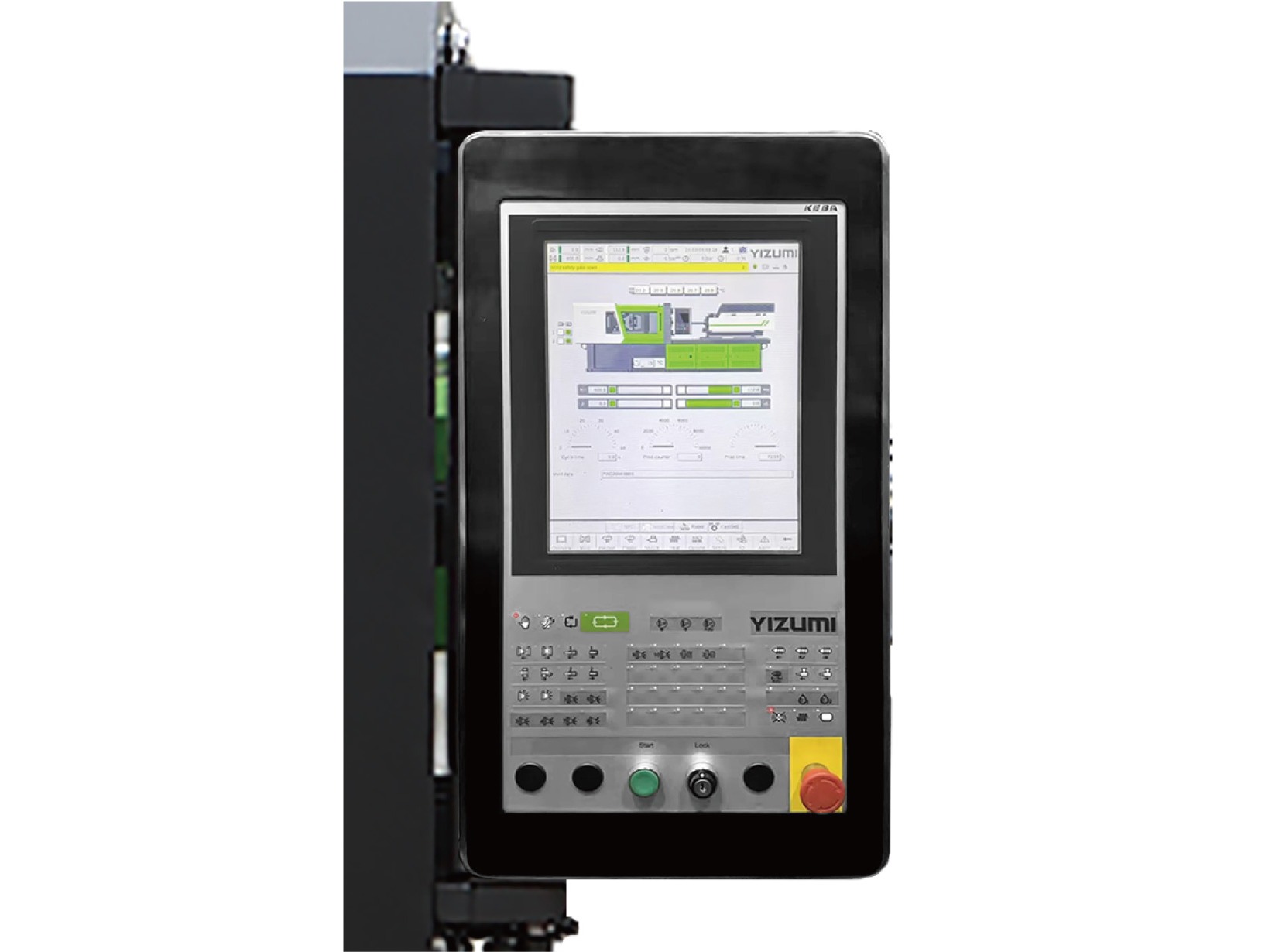

European KEBA2000 Controller
The powerful system is easy to operate and ideal for the high-performance solutions for electric injection molding machines.
15-inch HD color touchscreen display with clear and neat screen layout. 1ms scan cycle.
15-inch HD color touchscreen display with clear and neat screen layout. 1ms scan cycle.
Unique servo direct control (SDC) technology
Four servo motors control injection, plasticizing, clamping, and ejection independently, allowing faster feedback, more responsive control, and improved control accuracy.
More precise control of speed, position and pressure to meet the requirements of precision equipment.
More precise control of speed, position and pressure to meet the requirements of precision equipment.
All-metal baseboard for the electric control unit
Galvanized mounting plate for better cooling and anti-interference capacity.
Standardized wiring layout. Neat wiring and standardized interface layout for easy operation.
Standardized wiring layout. Neat wiring and standardized interface layout for easy operation.
Modular Injection Unit Selections
The modular injection unit allows flexible combination with a number of options to quickly meet various application needs:
- 15T˜1380T clamping force, 16 clamping modes.
- Each clamping mode has the option to select different injection units and 9 types of barrel units.
- 17 injection unit configurations, screws range Φ14˜ 116mm.
- Cover injection speeds of 160/200/300/350 (mm/s).
- 15T˜1380T clamping force, 16 clamping modes.
- Each clamping mode has the option to select different injection units and 9 types of barrel units.
- 17 injection unit configurations, screws range Φ14˜ 116mm.
- Cover injection speeds of 160/200/300/350 (mm/s).

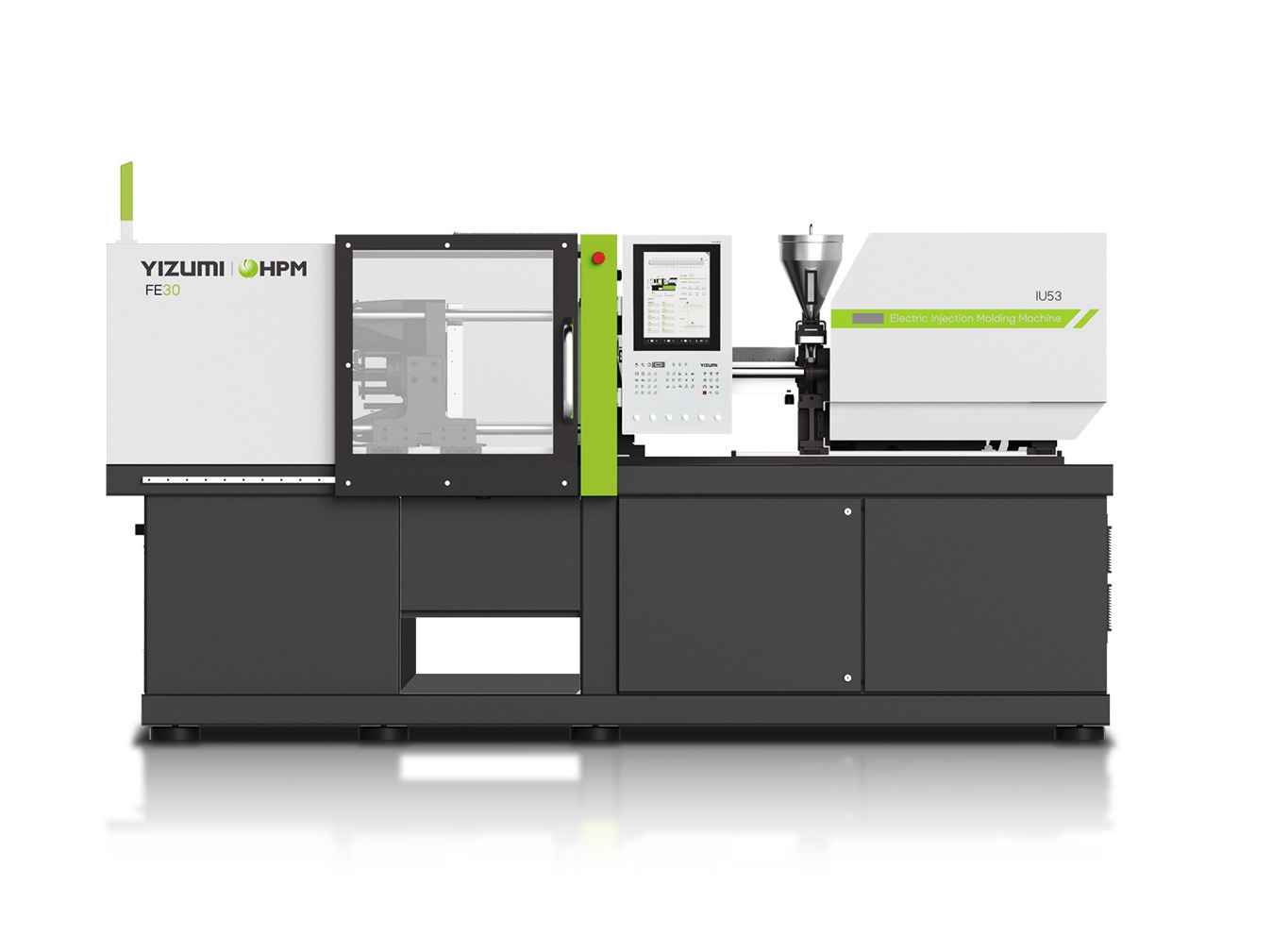

FE Series Micro Injection Molding (FE15-30)
Optimized platen rigidity
Minimized platen deformation fully ensures balanced force distribution at the center of precision mold, guaranteeing product consistency. Platen parallelism ≤ 0.02mm.
Double-ball-screw electric carriage structure
The nozzle maintains uniform and stable contact force against the mold surface, preventing material leakage while reducing minimizing deformation of the fixed platen caused by uneven force distribution, thereby ensuring stable products.
High-precision linear guides
Superior platen parallelism and guiding accuracy for precision manufacturing applications. Straightness ≤ 0.01mm (for specific stroke).
